Crankshaft Specifications
Crankshaft
Tightening torque

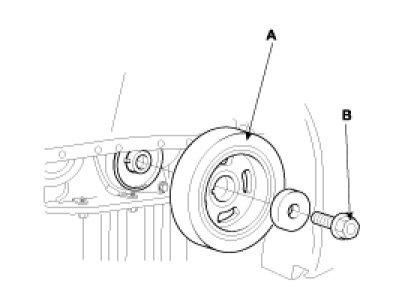

Crankshaft pulley bolt 156.9 - 166.7 N.m (16.0 - 17.0 kgf.m, 115.7 - 123.0 lb-ft)
Standard end play
Standard 0.06 - 0.26 mm (0.0023 - 0.010 in)
Limit 0.30 mm (0.0118 in)
Crankshaft
Tightening torque
Crankshaft pulley bolt 156.9 - 166.7 N.m (16.0 - 17.0 kgf.m, 115.7 - 123.0 lb-ft)
Standard end play
Standard 0.06 - 0.26 mm (0.0023 - 0.010 in)
Limit 0.30 mm (0.0118 in)
