Cylinder Bore

Cylinder Bore

cylinder bore diameter.
Using a cylinder bore gauge, measure the cylinder bore diameter at position in the thrust and axial directions.
Standard diameter 82.00 - 82.03 mm (3.2283 - 3.2295 in)

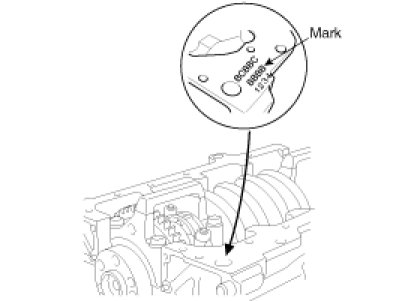

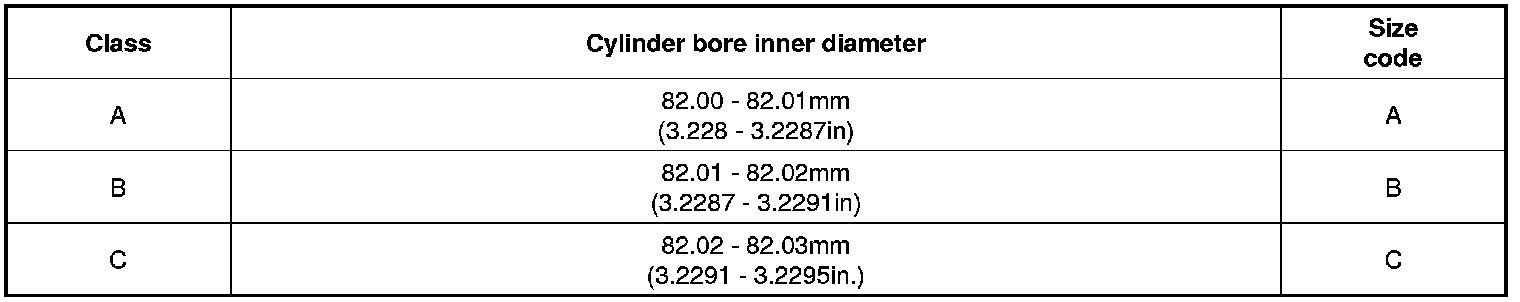

Check the cylinder bore size code on the cylinder block bottom face.









Piston-to-cylinder clearance 0.02 - 0.04 mm(0.0008 - 0.0016 in)

Cylinder Block
Flatness of cylinder block gasket surface
Standard 0.05 mm (0.0020 in)
