Oil Pump, Engine

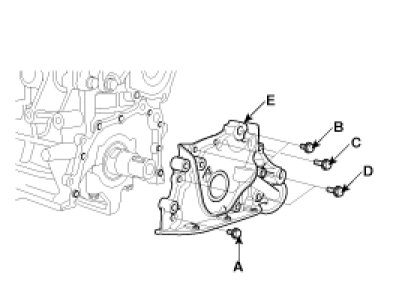

Oil Pump

Tightening torque 19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)




Body length
(A) : 25 mm (0.98 in)
(B) : 20 mm (0.787 in)
(C) : 38 mm (1.496 in)
(D) : 45 mm (1.771 in)
