Circuit Diagram

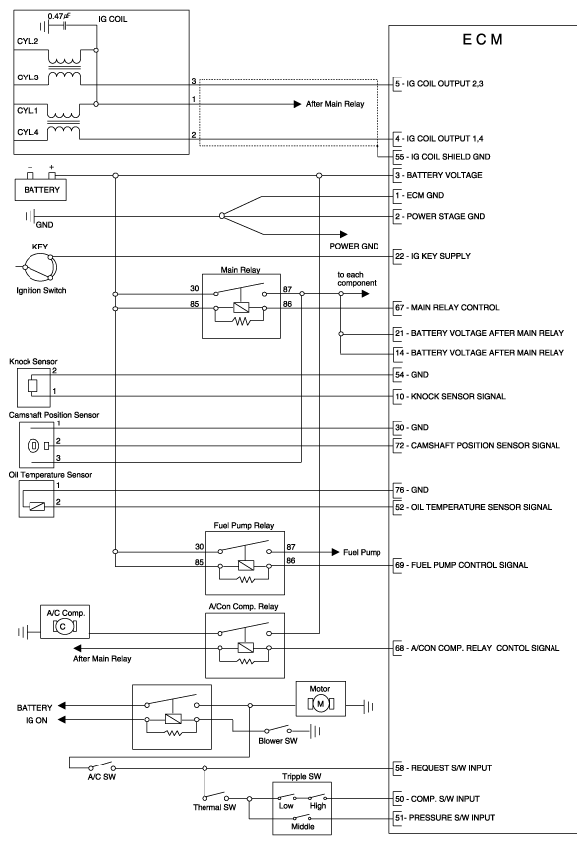

Fig 1: ECM Circuit Diagram (1 Of 3)
G06400466Courtesy of KIA MOTORS AMERICA, INC.

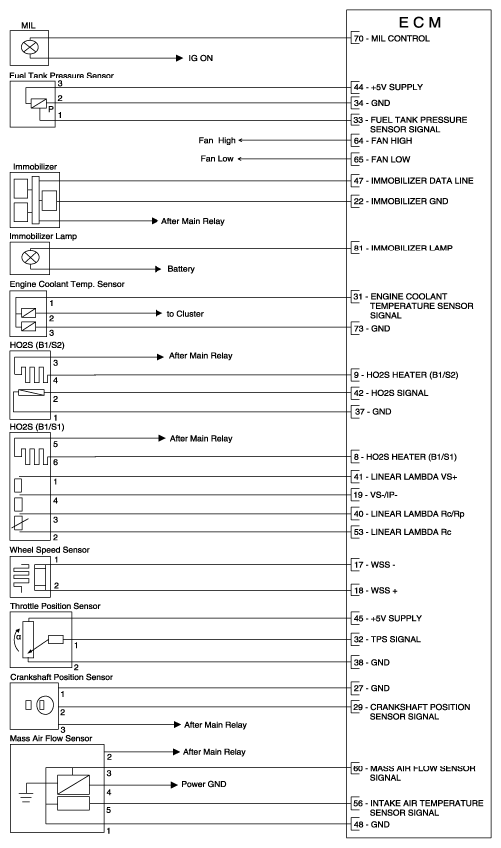

Fig 2: ECM Circuit Diagram (2 Of 3)
G06400467Courtesy of KIA MOTORS AMERICA, INC.

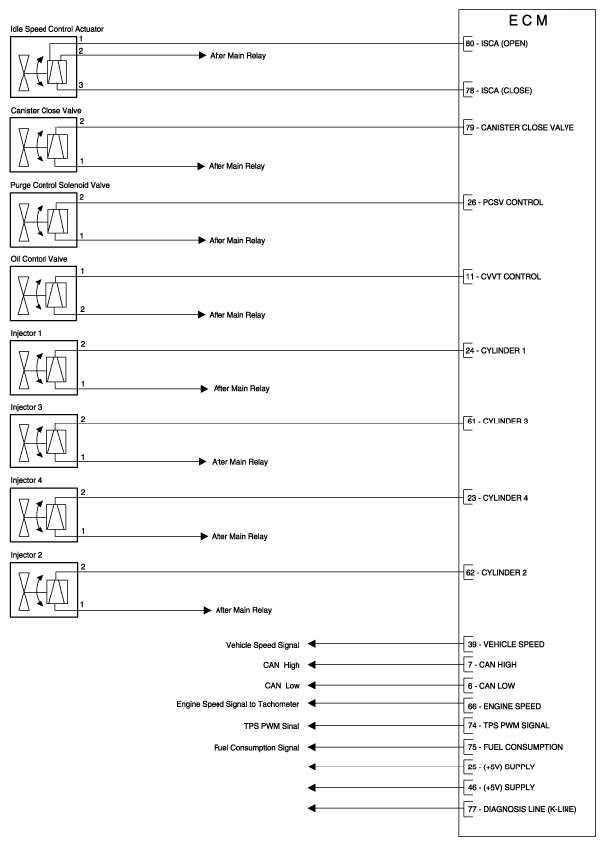

Fig 3: ECM Circuit Diagram (3 Of 3)
G06400468Courtesy of KIA MOTORS AMERICA, INC.
