Components Location

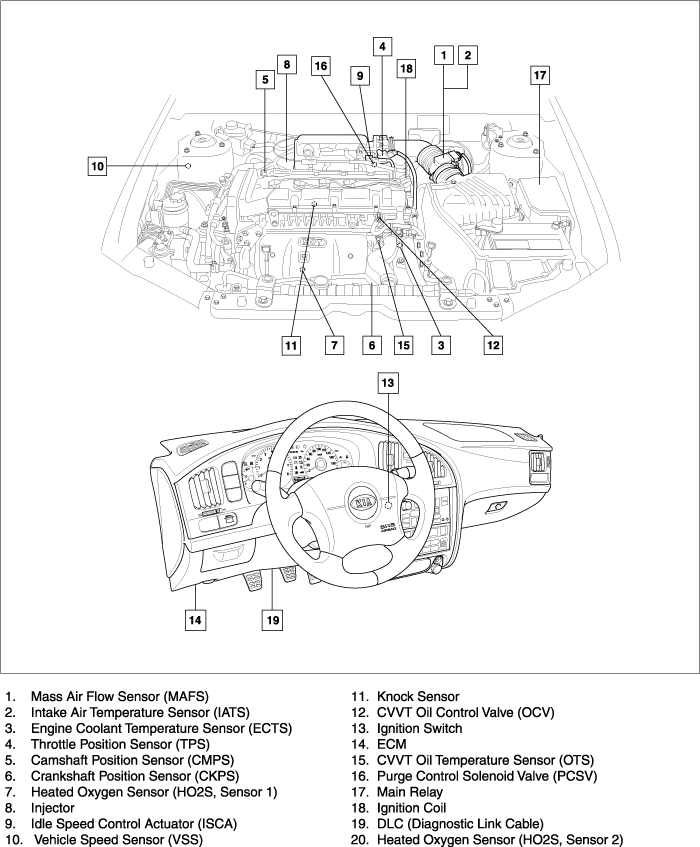

Fig 1: Identifying Fuel System Components Location

G00488901

Courtesy of KIA MOTORS AMERICA, INC.

1. Mass Air Flow Sensor (MAFS)

2. Intake Air Temperature Sensor (IATS)

Fig 2: MAFS And IATS

G00488902

Courtesy of KIA MOTORS AMERICA, INC.

3. Engine Coolant Temperature Sensor (ECTS)

Fig 3: ECTS

G00488903

Courtesy of KIA MOTORS AMERICA, INC.

4. Throttle Position Sensor (TPS)

9. Idle Speed Control Actuator (ISCA)

Fig 4: TPS And ISCA

G00488904

Courtesy of KIA MOTORS AMERICA, INC.

5. Camshaft Position Sensor (CMPS)

Fig 5: CMPS

G00488905

Courtesy of KIA MOTORS AMERICA, INC.

6. Crankshaft Position Sensor (CKPS)

Fig 6: CKPS

G00488906

Courtesy of KIA MOTORS AMERICA, INC.

7. Heated Oxygen Sensor (HO2S, Sensor 1)

Fig 7: HO2S, Sensor 1

G00488907

Courtesy of KIA MOTORS AMERICA, INC.

8. Injector

Fig 8: Injector

G00488908

Courtesy of KIA MOTORS AMERICA, INC.

11. Knock Sensor

Fig 9: Knock Sensor

G00488909

Courtesy of KIA MOTORS AMERICA, INC.

12. CVVT Oil Control Valve (OCV)

15. CVVT Oil Temperature Sensor (OTS)

Fig 10: OCV And OTS

G00488910

Courtesy of KIA MOTORS AMERICA, INC.

14. ECM

Fig 11: ECM

G00488911

Courtesy of KIA MOTORS AMERICA, INC.

16. Purge Control Solenoid Valve (PCSV)

Fig 12: PCSV

G00488912

Courtesy of KIA MOTORS AMERICA, INC.

17. Main Relay

Fig 13: Main Relay

G00488913

Courtesy of KIA MOTORS AMERICA, INC.

18. Ignition Coil

Fig 14: Ignition Coil

G00488914

Courtesy of KIA MOTORS AMERICA, INC.

20. Heated Oxygen Sensor (HO2S, Sensor 2)

Fig 15: HO2S, Sensor 2

G00488915

Courtesy of KIA MOTORS AMERICA, INC.
