Schematic Diagrams

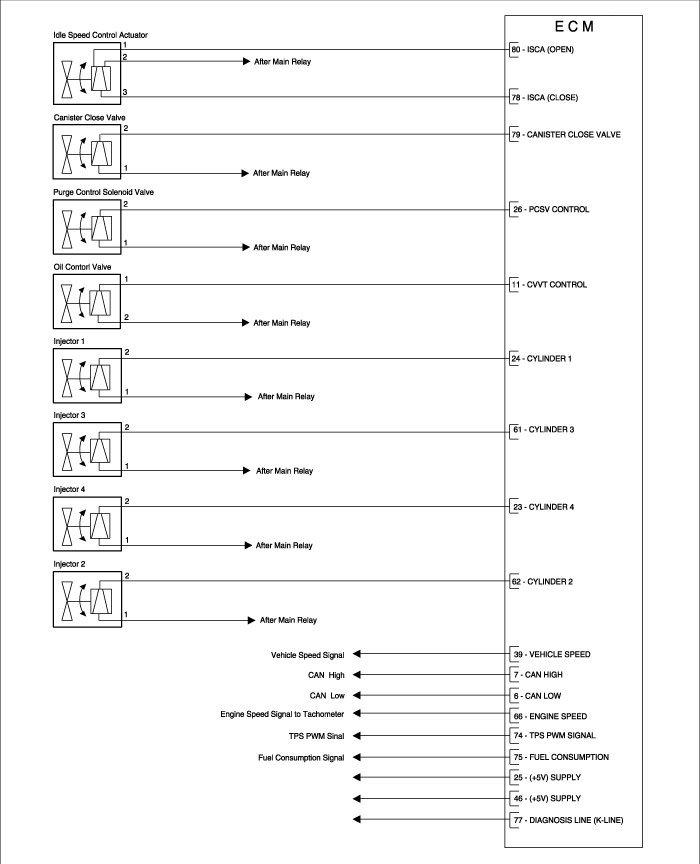

Fig 1: Engine Control Module - Circuit Diagram (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

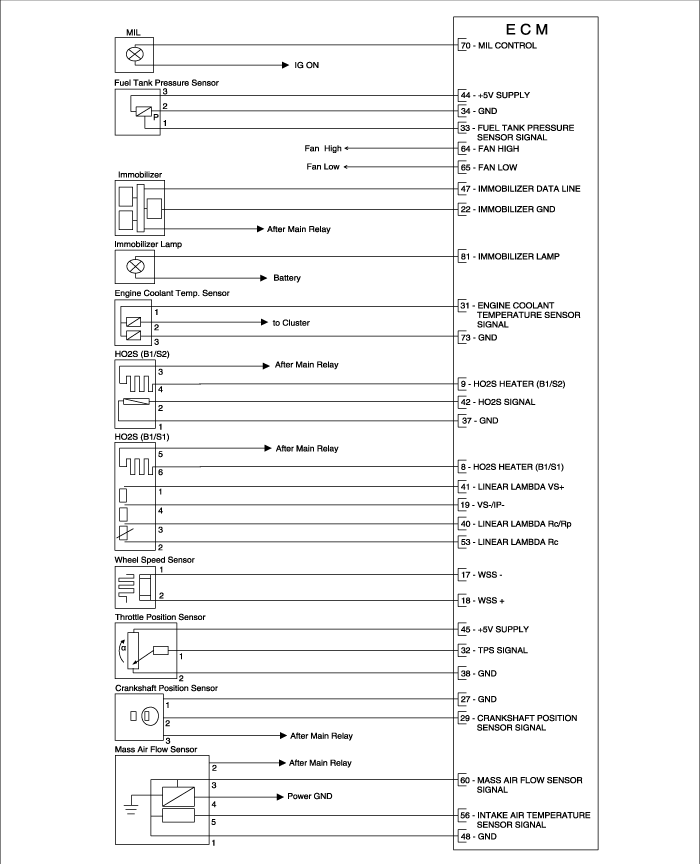

Fig 2: Engine Control Module - Circuit Diagram (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Engine Control Module - Circuit Diagram (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
