Repair procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the steering column upper and lower shrouds (A).

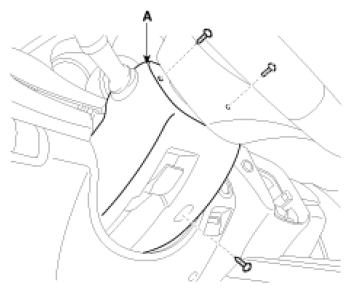

Fig 1: Identifying Steering Column Shrouds
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the electronic steering column lock connector (A).

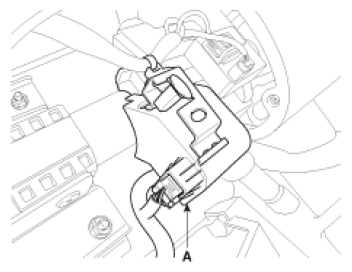

Fig 2: Identifying Electronic Steering Column Lock Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the electronic steering column lock (A) after removing the shear bolts.
(Refer to STEERING COLUMN AND SHAFT )

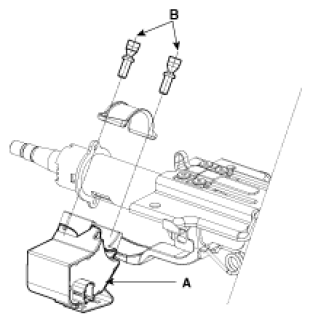

Fig 3: Identifying Electronic Steering Column Lock & Shear Bolts
Courtesy of KIA MOTORS AMERICA, INC.
