PDM Diagnosis With GDS

It will be able to diagnose defects of Smart key with GDS quickly.
GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
Select model and "Smart key system (Button start)" menu if you want to check PDM.

Fig 1: GDS Display - Selecting Smart Key Unit
Courtesy of KIA MOTORS AMERICA, INC.

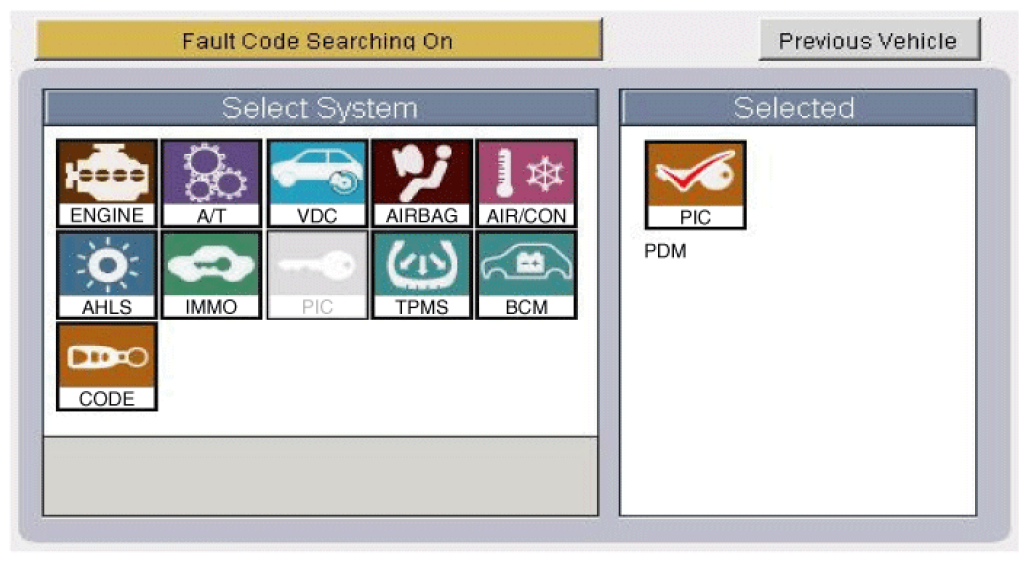

Select "PDM" in the menu.

Fig 2: GDS Display - Selecting PDM
Courtesy of KIA MOTORS AMERICA, INC.

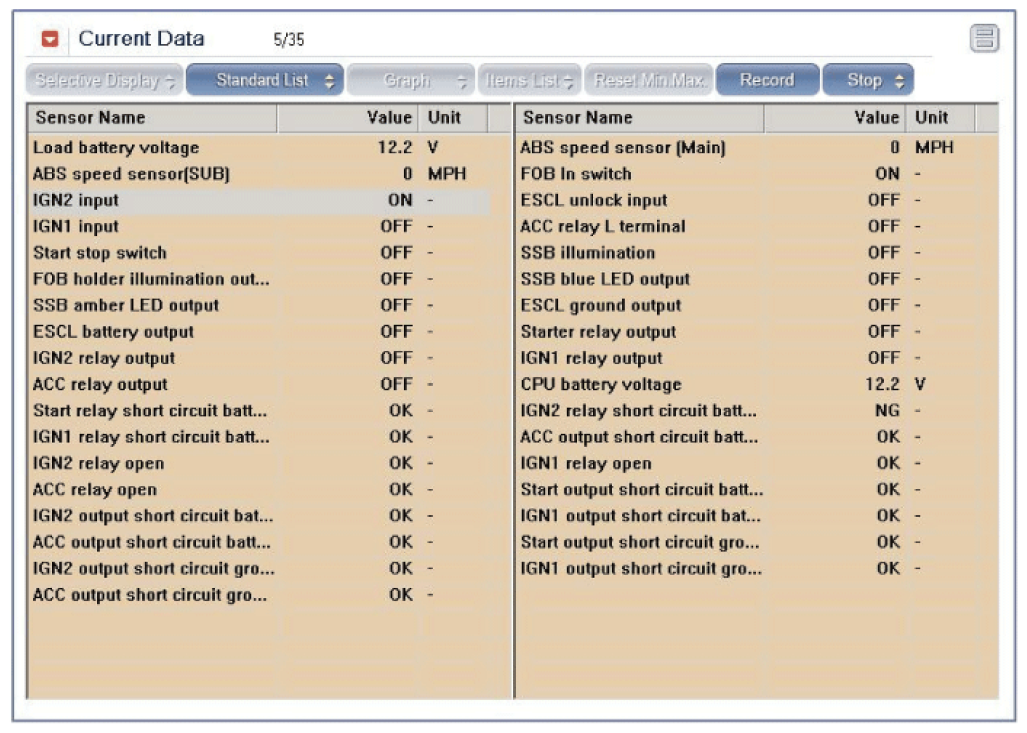

Select "Current Data", if you want to check current data of PDM.
It provides the input/output status of each module.

Fig 3: GDS Display - Current Data Screen
Courtesy of KIA MOTORS AMERICA, INC.

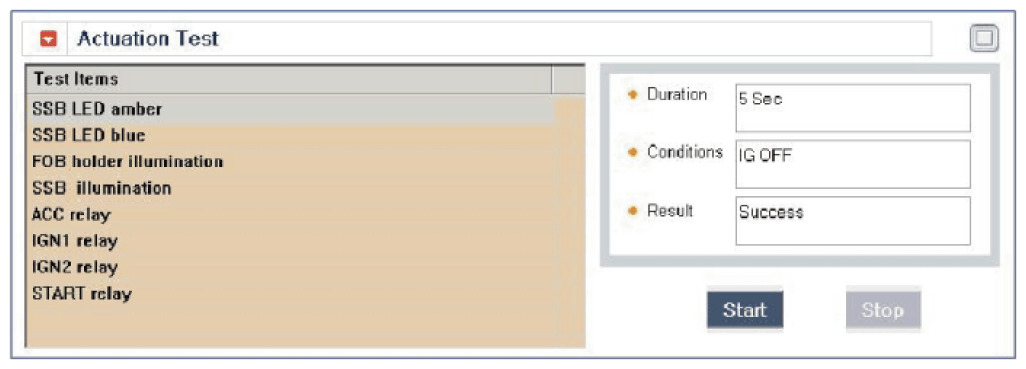

If you want to check PDM data operation forcefully, select "Actuation test".

Fig 4: GDS Display - Actuation Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
