Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering column assembly.

    (Refer to STEERING COLUMN AND SHAFT )

  3. Remove the PDM relay, before removing the PDM.
  4. Disconnect the power distribution module (PDM) connectors.
  5. Remove the power distribution module (A) after loosening nuts and bolts.

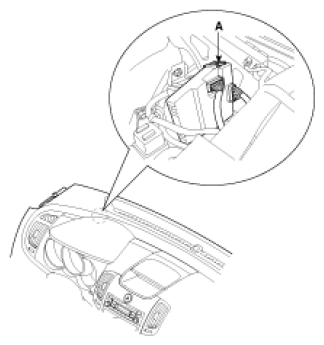

    Fig 1: Locating Power Distribution Module
    G06496499Courtesy of KIA MOTORS AMERICA, INC.

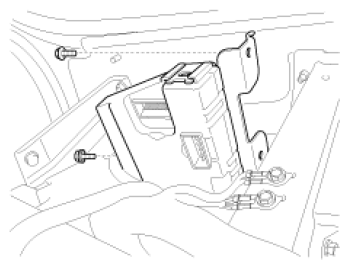

    Fig 2: Identifying Power Distribution Module Mounting Bolts
    G06496500Courtesy of KIA MOTORS AMERICA, INC.
