System Circuit Diagram

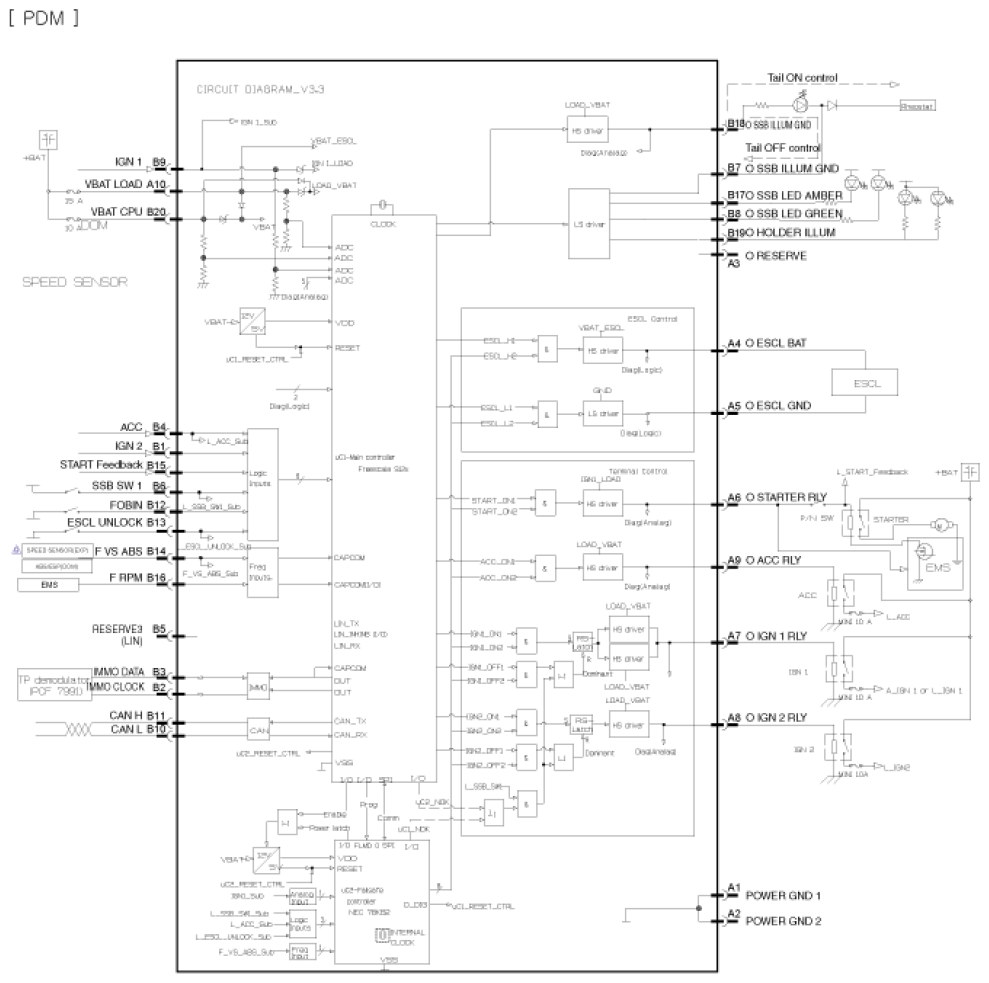

Fig 1: Power Distribution Module - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
