Components and Components Locations: Component

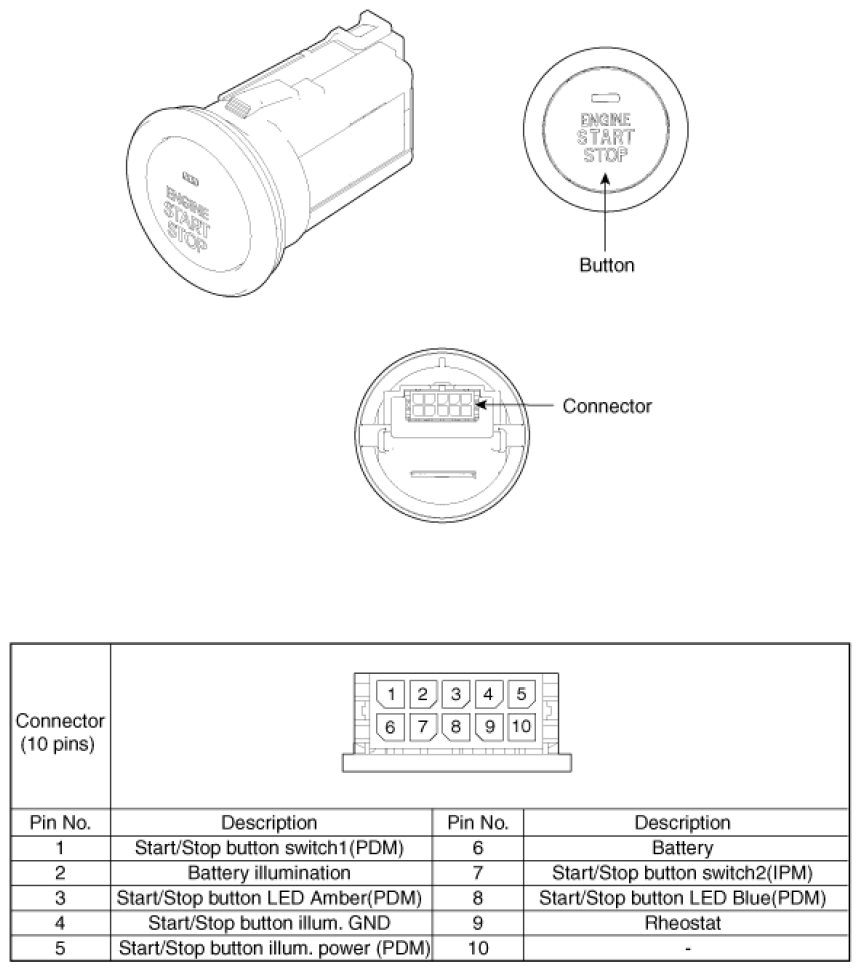

Fig 1: Identifying Start Stop Button, Connector, & Terminals
G06496487Courtesy of KIA MOTORS AMERICA, INC.
