Passenger Power Window Switch

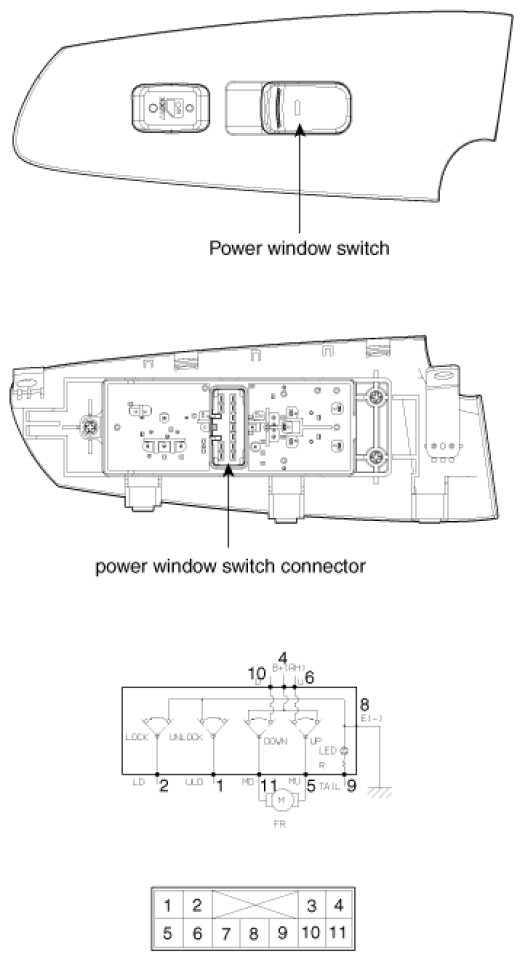

Fig 1: Identifying Passenger Power Window Switch, Connector, & Circuit Diagram
G06496275Courtesy of KIA MOTORS AMERICA, INC.
