Power Window Main Switch

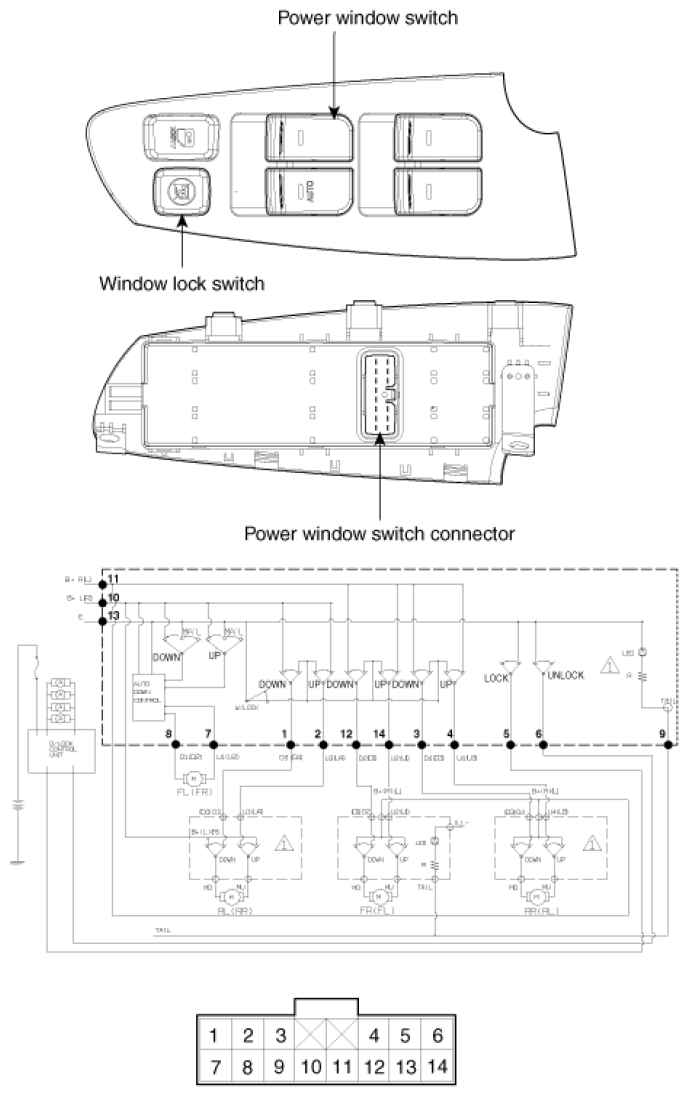

Fig 1: Identifying Power Window Switch, Connector, Window Lock Switch, & Circuit Diagram
G06496274Courtesy of KIA MOTORS AMERICA, INC.
