Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim.
(For Coupe, refer to FRONT DOOR . For Sedan, refer to FRONT DOOR .)

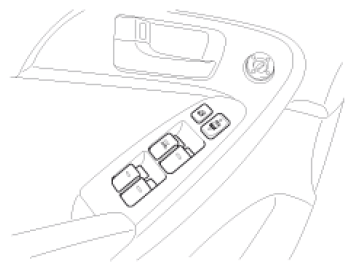

Fig 1: Identifying Power Window Switches
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector from the switch and remove the screws.

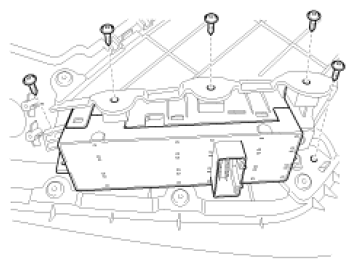

Fig 2: Identifying Power Window Main Switch & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hooks when removing the switch module.

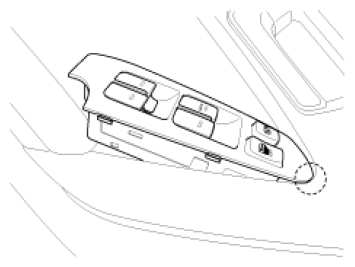

Fig 3: Identifying Switch Module
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
(A : Auto Down, B : Auto Up & Down)

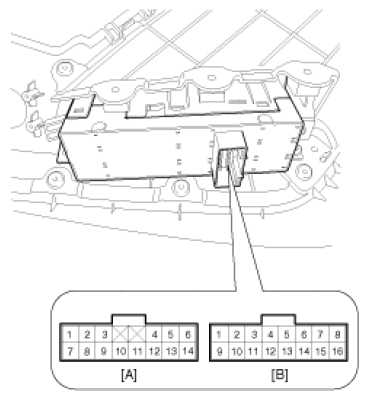

Fig 4: Identifying Auto Down & Auto Up/Down Connectors
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Continuity Reference Chart (Auto Down)
Courtesy of KIA MOTORS AMERICA, INC.

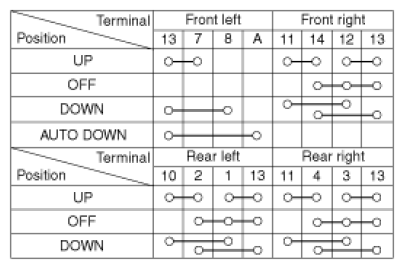

Fig 6: Continuity Reference Chart (Auto Up & Down)
Courtesy of KIA MOTORS AMERICA, INC.
