Power Windows: Troubleshooting

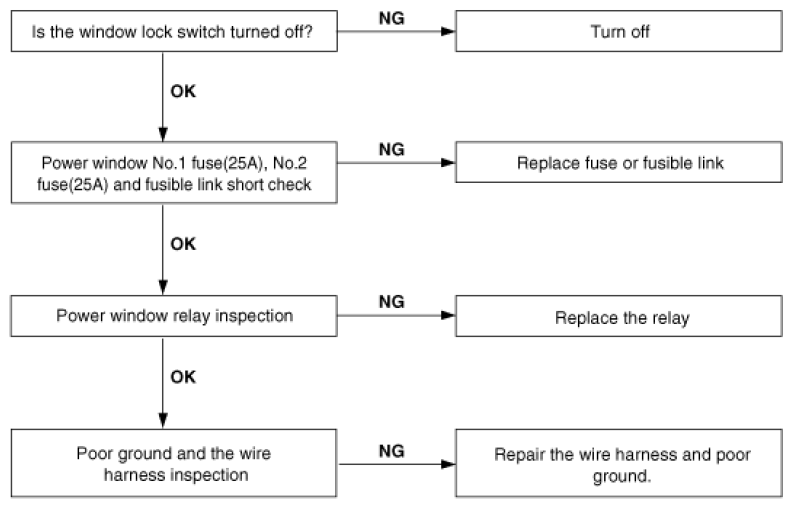

  1. No windows operate from the main switch on the driver's door.
    Fig 1: Troubleshooting Flow Chart (No Windows Operate From Main Switch On Driver's Door)
    G06496291Courtesy of KIA MOTORS AMERICA, INC.

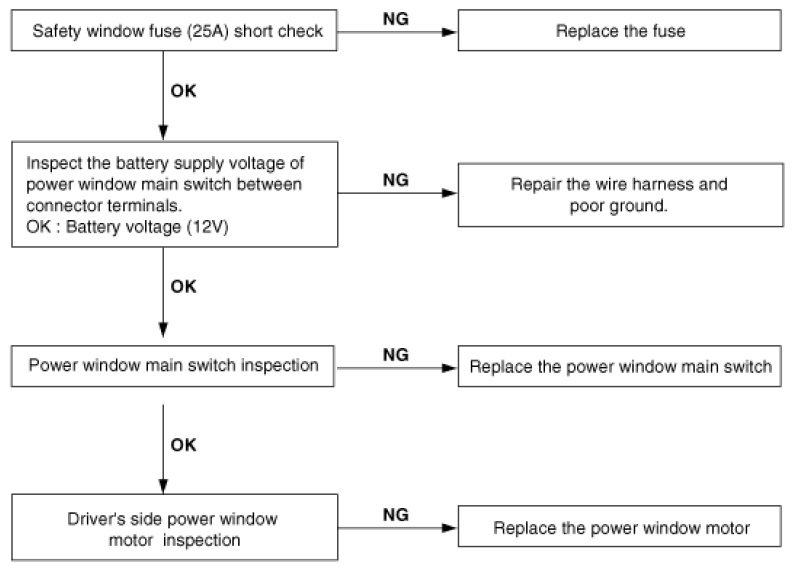

  2. Driver's side window does not operate.
    Fig 2: Troubleshooting Flow Chart (Driver's Side Window Does Not Operate)
    G06496292Courtesy of KIA MOTORS AMERICA, INC.

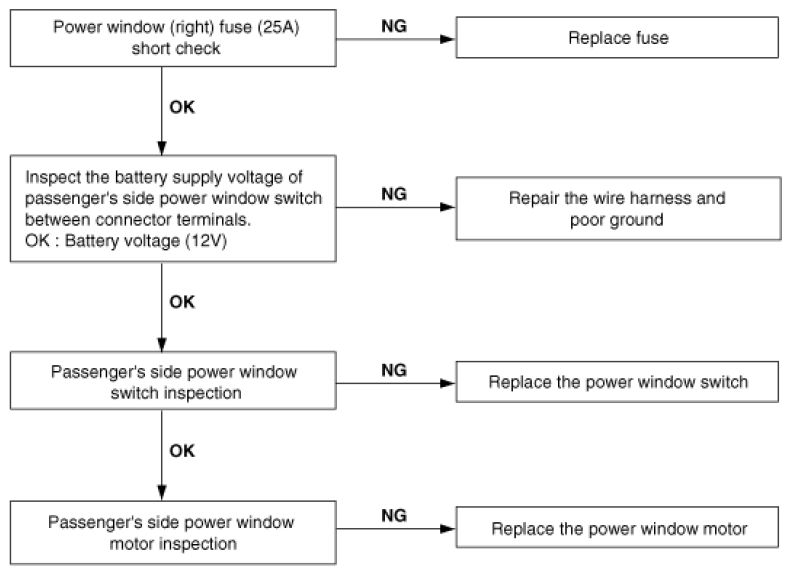

  3. Passenger's side window does not operate.
    Fig 3: Troubleshooting Flow Chart (Passenger's Side Window Does Not Operate)
    G06496293Courtesy of KIA MOTORS AMERICA, INC.
