Components and Component Locations: Components

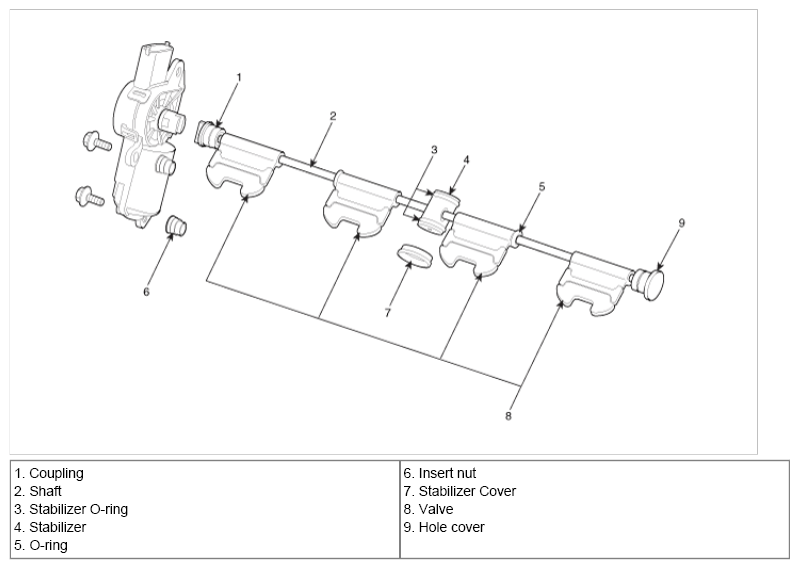

Fig 1: Identifying Variable Charge Motion Actuator Components
G06494342Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: The VCM actuator has to be installed at the fully closing position of the VCM valve.
If not, the VCM coupling of the VCM shaft can't be put in the VCM actuator.
