Repair procedures: Installation

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Install the SRSCM with the SRSCM mounting bolts.

    Tightening torque (SRSCM Mounting Bolt)

    : 9.5 ~ 13.6 Nm (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb.ft)

    NOTE: Use new mounting bolts when replacing the SRSCM after a collision.
  4. Connect the SRSCM harness connectors.

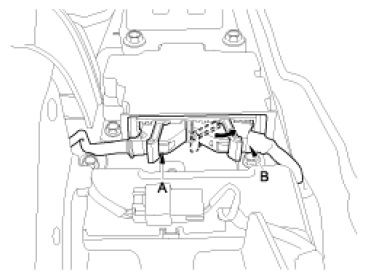

    Fig 1: Identifying SRSCM Harness Connectors
    G06494698Courtesy of KIA MOTORS AMERICA, INC.
  5. Install the floor console. (For Coupe, refer to CONSOLE . For Sedan, refer to CONSOLE .)
  6. Connect the DAB, PAB, SAB, CAB and BPT connectors.
  7. Reconnect the battery negative cable.
  8. After installing the SRSCM, confirm proper system operation:
    1. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
