Repair procedures: Removal

Remove the ignition key from the vehicle.
Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Disconnect the DAB, PAB, SAB, CAB and BPT connectors.
Remove the floor console. (For Coupe, refer to CONSOLE . For Sedan, refer to CONSOLE .)
Press the lock (1), the pull back the connector lever (2) until it clicks.

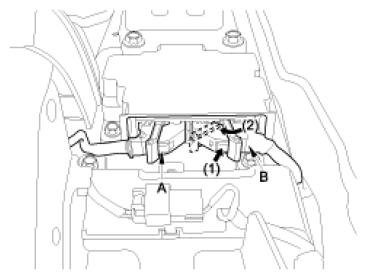

Fig 1: Identifying Lock, Connector Lever, & Harness Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the SRSCM harness connector (A) and (B) from the SRSCM.
Remove the SRSCM mounting bolts (3EA) from the SRSCM, then remove the SRSCM.

Fig 2: Locating SRSCM Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
