Repair procedures: Removal

  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front seat assembly. (For Coupe, refer to FRONT SEAT . For Sedan, refer to FRONT SEAT .)
  3. Loosen the two STPS screws, then remove the STPS after disconnecting the STPS connector.

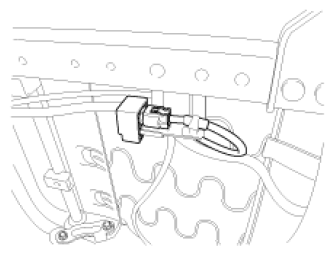

    Fig 1: Identifying STPS Connector
    G06494719Courtesy of KIA MOTORS AMERICA, INC.
