Repair Procedures (A4CF2): Installation

After placing the manual lever in N position, install the shift cable to the transaxle. (refer to AUTOMATIC TRANSAXLE SYSTEM - A4CF2 )
Install the retainer (A) and nuts (B).
Tightening torque:

12~15Nm (1.2~1.5kgf.m, 8.7~10.8lb-ft)

NOTE: In case, install the crash pad and cowl cross bar. (For Coupe, refer to CRASH PAD and COWL CROSS BAR . For Sedan, refer to CRASH PAD and COWL CROSS BAR .)

Fig 1: Identifying Retainer & Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift lever assembly (A).
Tightening torque:

9~14Nm (0.9~1.4kgf.m, 6.5~10.1lb-ft)

Fig 2: Identifying Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Connect the interlock switch connector (A).

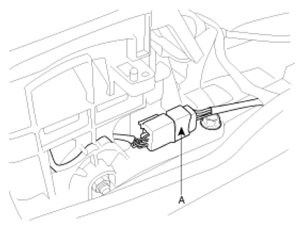

Fig 3: Identifying Interlock Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift cable assembly (B) by installing the clamp (A).

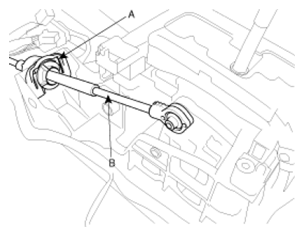

Fig 4: Identifying Shift Cable Assembly & Clamp
Courtesy of KIA MOTORS AMERICA, INC.
Install the center console. (For Coupe, refer to CONSOLE . For Sedan, refer to CONSOLE .)
Install the shift lever knob (A).

Fig 5: Identifying Shift Lever Knob
Courtesy of KIA MOTORS AMERICA, INC.
