Repair Procedures (A4CF2): Removal

Remove the shift lever knob (A).

Fig 1: Identifying Shift Lever Knob
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center console. (For Coupe, refer to CONSOLE . For Sedan, refer to CONSOLE .)

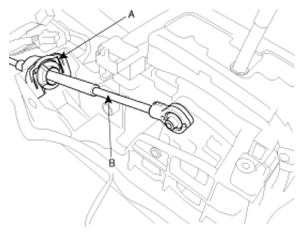

Remove the shift cable assembly (B) by removing the clamp (A).

Fig 2: Identifying Shift Cable Assembly & Clamp
Courtesy of KIA MOTORS AMERICA, INC.

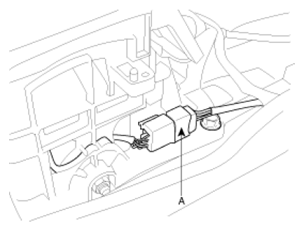

Disconnect the interlock switch connector (A).

Fig 3: Identifying Interlock Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift lever assembly (A).

Fig 4: Identifying Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the retainer (A) and nuts (B).
NOTE: In case, remove the crash pad and cowl cross bar. (For Coupe, refer to CRASH PAD and COWL CROSS BAR . For Sedan, refer to CRASH PAD and COWL CROSS BAR .)

Fig 5: Identifying Retainer & Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable assembly from the transaxle (refer to AUTOMATIC TRANSAXLE SYSTEM - A4CF2 ).
Remove the shift cable assembly.
