Passenger Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim.
(For Coupe, refer to FRONT DOOR . For Sedan, refer to FRONT DOOR .)

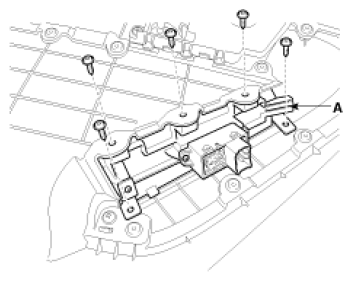

Remove the power window switch module (A).

Fig 1: Identifying Power Window Switch Module (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to Fig 3 and Fig 4. If the continuity condition is not normal, replace the switch.

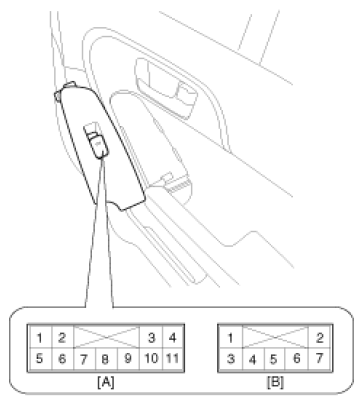

(A : Door Lock/Unlock, B : General)

Fig 2: Identifying Door Lock/Unlock & General Terminals
Courtesy of KIA MOTORS AMERICA, INC.

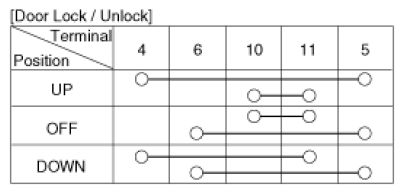

Fig 3: Door Lock/Unlock Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.

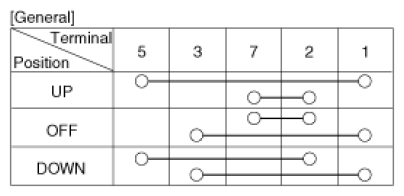

Fig 4: General Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
