Repair Procedures





Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the steering column assembly.

3. Remove the PDM relay, before removing the PDM.

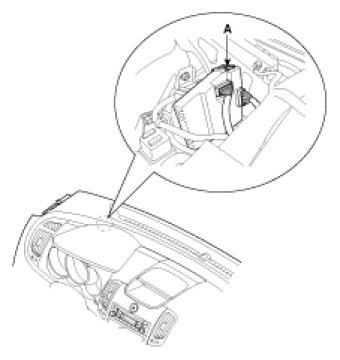

4. Disconnect the power distribution module(PDM) connectors.

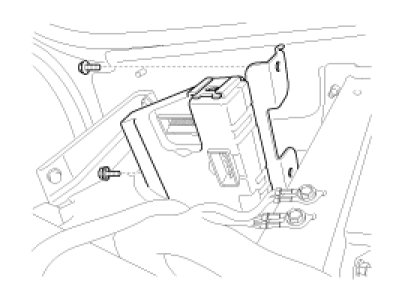

5. Remove the power distribution module(A) after loosening nut and bolt.










Installation

1. Install the power distribution module and PDM relay.
2. Install the steering column assembly.
