Fuel System - Specifications





Specifications

Sensors

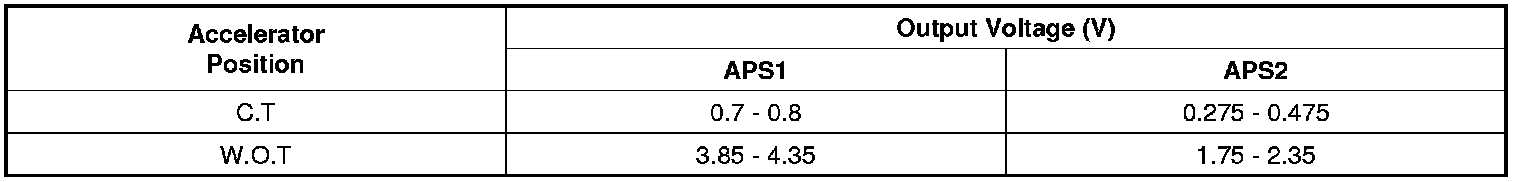

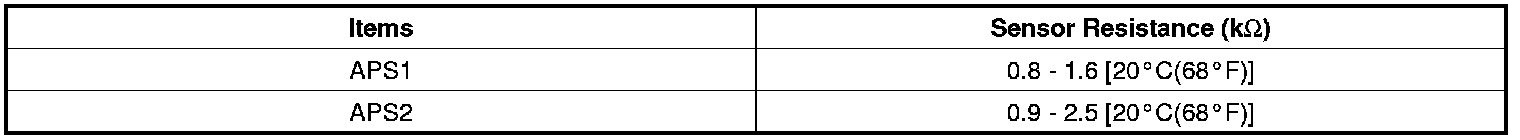

Accelerator Position Sensor (APS)
- Type: Variable resistor type
- Specification
