Fuel System - Specifications





Specifications

Sensors
Throttle Position Sensor (TPS) [integrated into ETC Module]
- Type: Variable resistor type

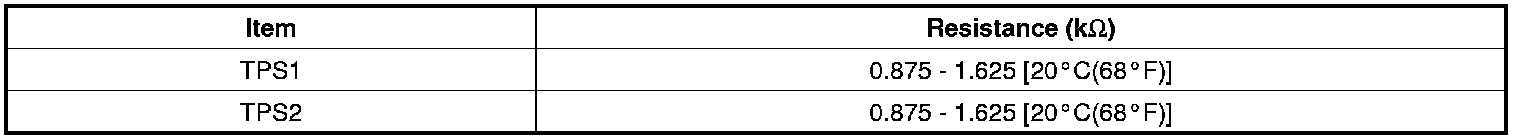

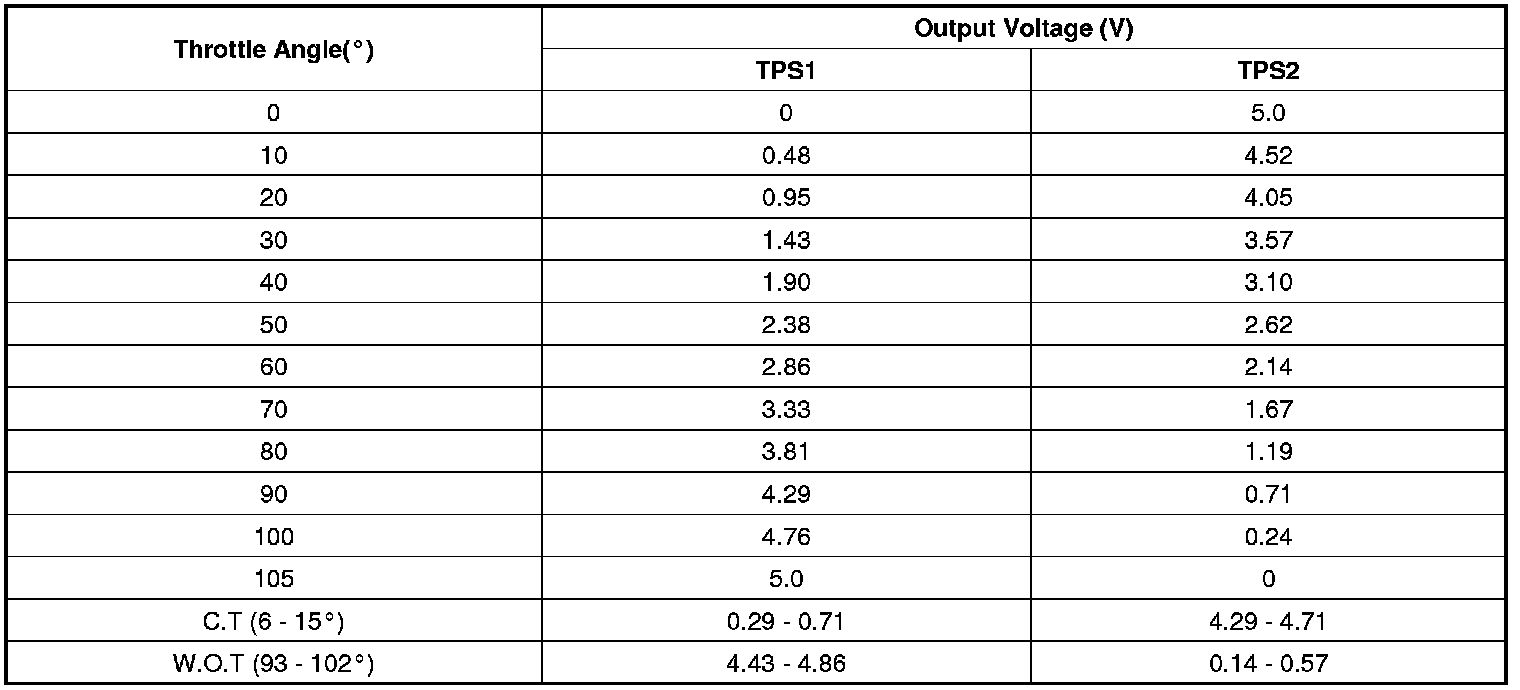

- Specification
