Power Window Switch





Components

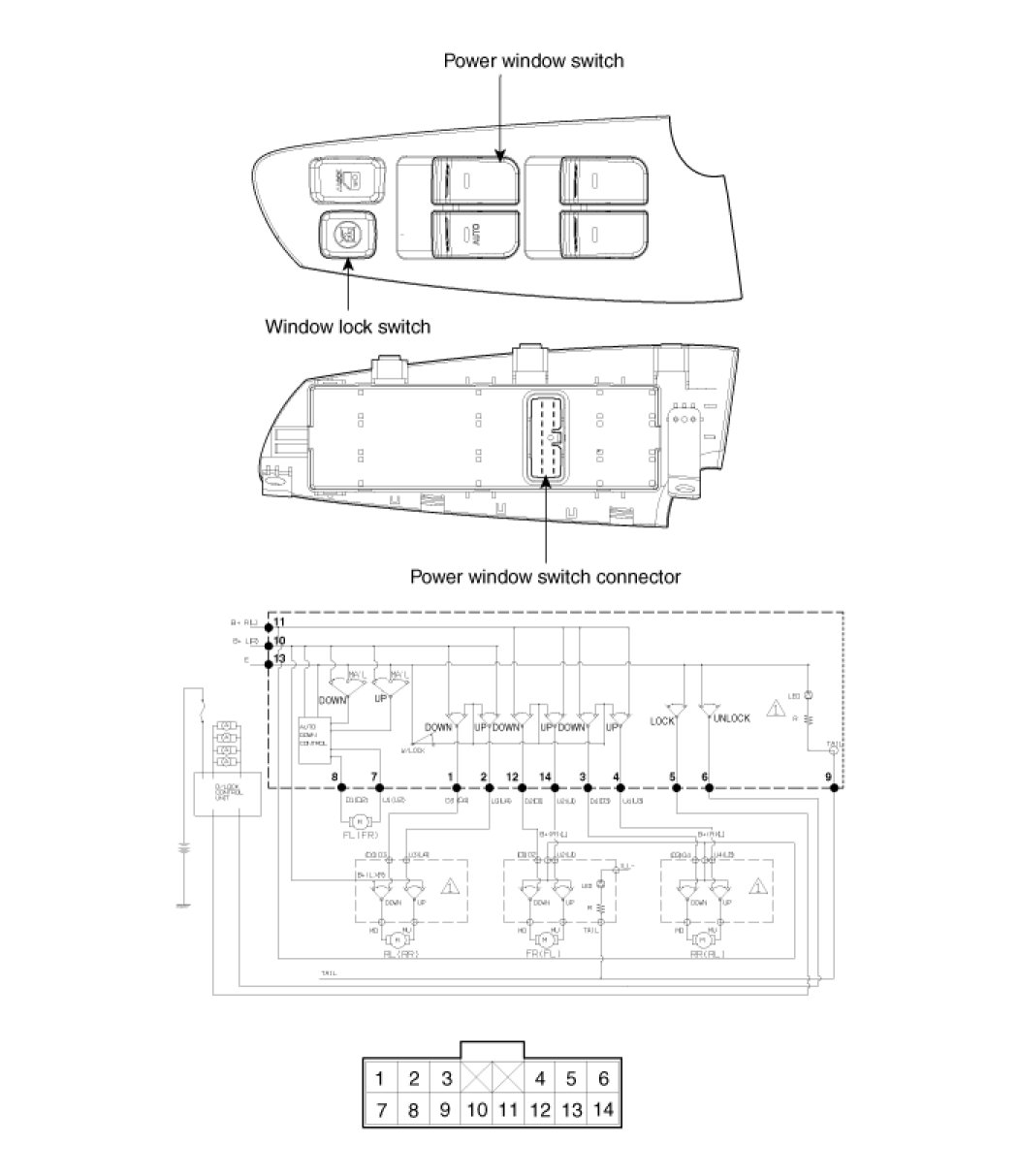

Power Window Main Switch

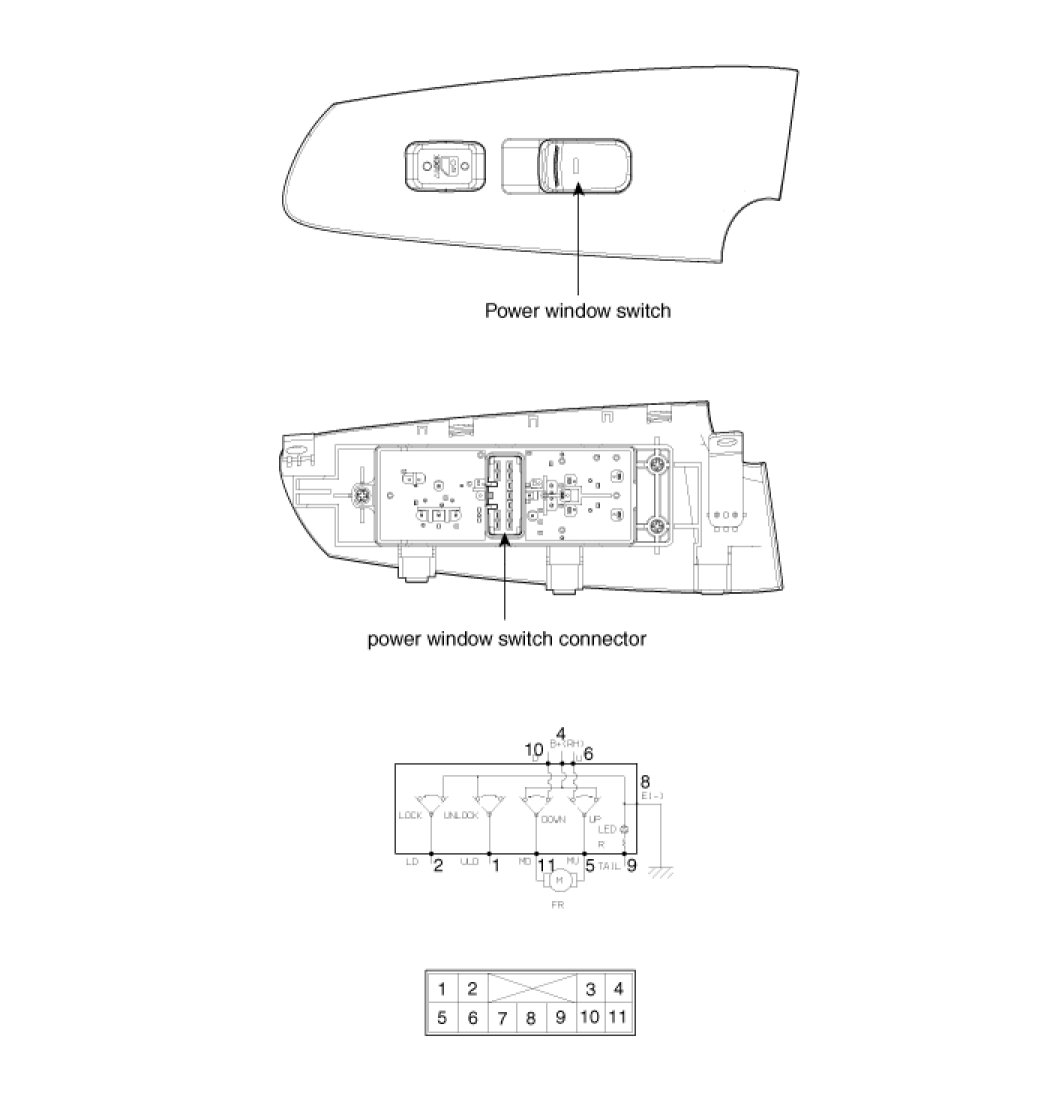

Passenger Power Window Switch

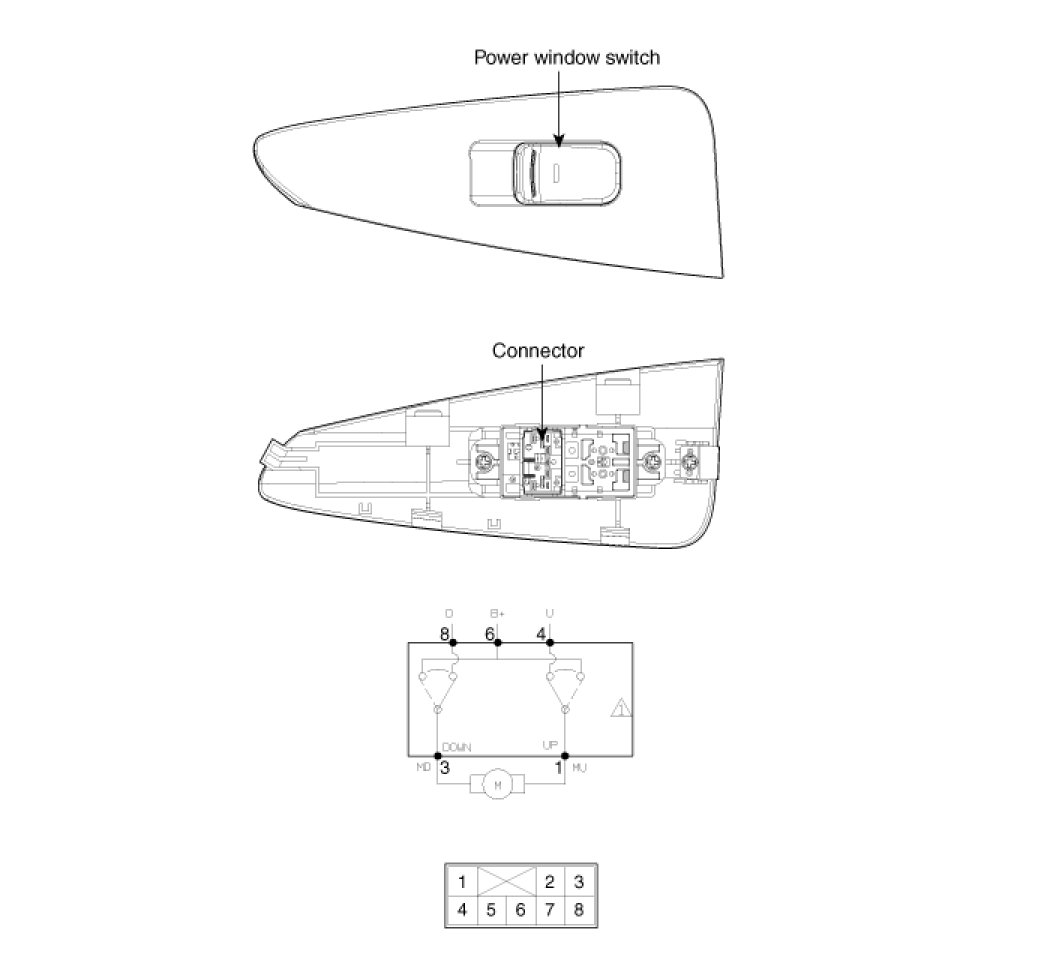

Rear Power Window Switch
