Spring-laded Lock Connector
Some SRS system connectors have a spring-loaded lock.

Airbag Connector
Disconnecting

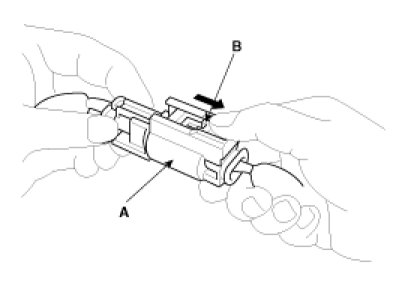

To release the lock, pull the spring-loaded sleeve (A) and he slider (B), while holding the opposite half of the connector.
Pull the connector halves apart. Be sure to pull on the sleeve and not on the connector half.




Connecting
Hold both connector halves and press firmly until the projection(C) of the sleeve-side connector clicks to lock.
