Connecting Rod, Engine

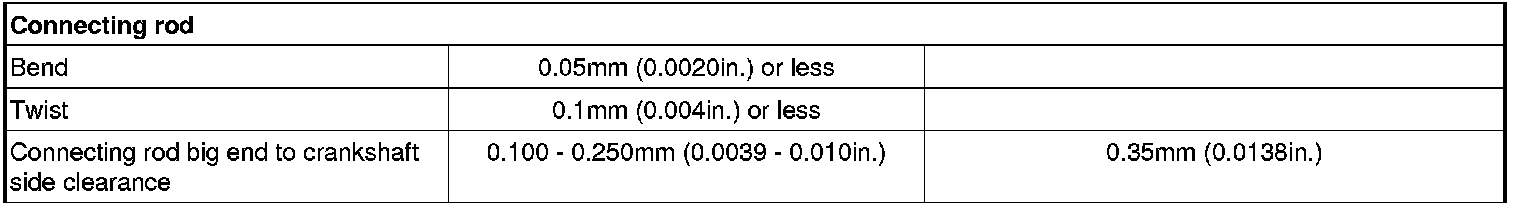

Connecting Rod






Standard end play 0.1 - 0.25 mm(0.004 - 0.010 in.)
Maximum end play 0.35 mm(0.0138 in.)

Connecting Rod Bearing Cap Bolt Torque:

Stage 1: Tighten to 17.7 - 21.6 N.m (1.8 - 2.2 kgf.m, 13.0 - 15.9 lb-ft)
Stage 2: Tighten an additional (88 - 92 degrees)
