Flywheel

Flywheel

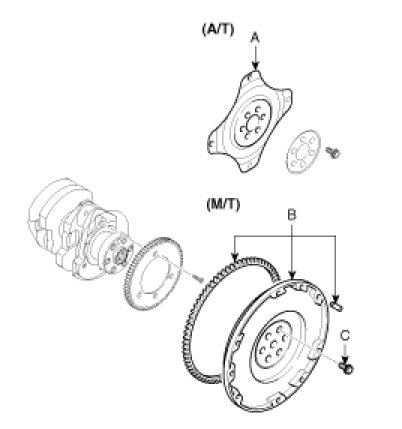

Install the drive plate (AT only) or fly wheel (MT only).

Tightening torque : 117.7 - 127.5N.m (12 - 13kgf.m, 86.8 - 94.0lb-ft)







NOTE:
- Always use new flywheel (drive plate) bolts(C).
- Apply sealant to the screw part (8mm from the end of the bolt) when using new flywheel bolts.

Sealant: Three bond 2403, Loctite 200 or 204
