Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A). (For Coupe, refer to CRASH PAD . For Sedan, refer to CRASH PAD .)

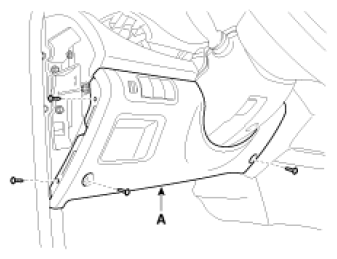

    Fig 1: Identifying Crash Pad Lower Panel
    G06496488Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the start/stop button (A) from crash pad lower panel.
    Fig 2: Identifying Start/Stop Button
    G06496489Courtesy of KIA MOTORS AMERICA, INC.
