Front Fender: Service and Repair

Replacement

NOTE:
- Be careful not to damage the hood and body.
- When removing the clips, use a clip remover.

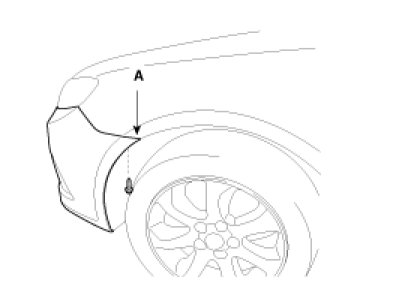

1. Remove the front bumper mounting screw (A).

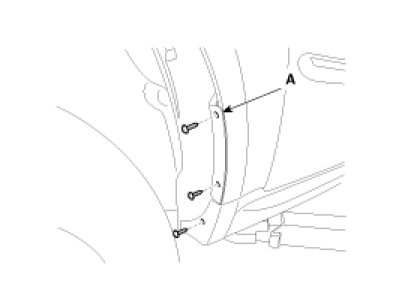

2. After loosening the fender mounting screws, remove the fender bumper mounting bracket (A).

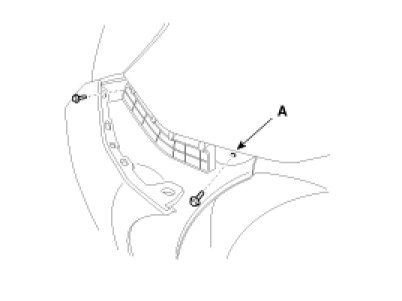

3. Loosening the fender mounting screws (A).

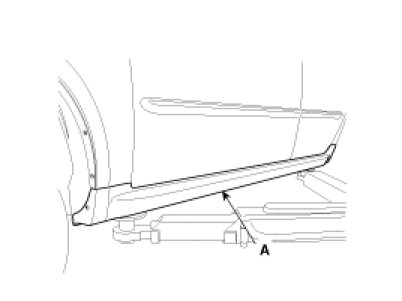

4. Remove the side garnish (A).

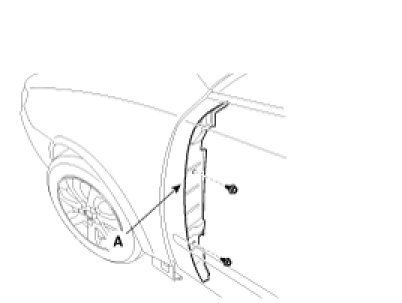

5. Remove the insulator pad (A).

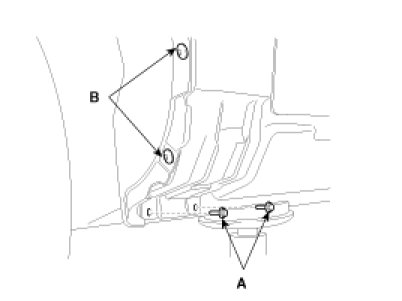

6. Remove the mounting bolts (A) and clips (B).

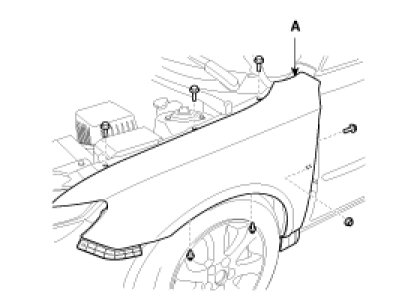

7. After loosening the fender mounting bolts, remove the fender (A).




8. Installation is the reverse of removal.
