Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.

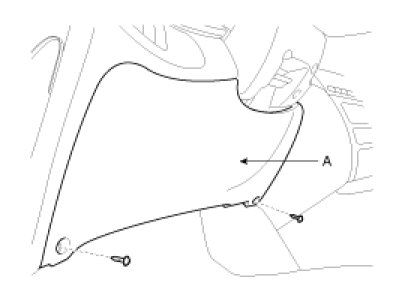

2. Remove the crash pad lower panel(A).

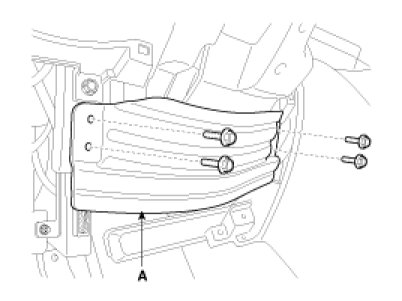

3. Remove the reinforcing panel (A).

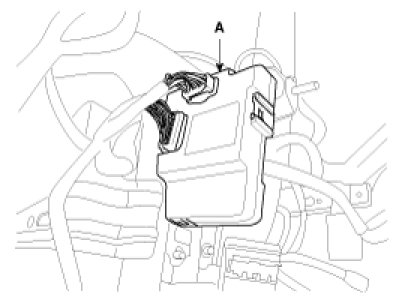

4. Remove the power distribution module(A) after loosening nuts.






Installation

1. Install the power distribution module.
2. Install the crash pad lower panel.
