Component Tests and General Diagnostics

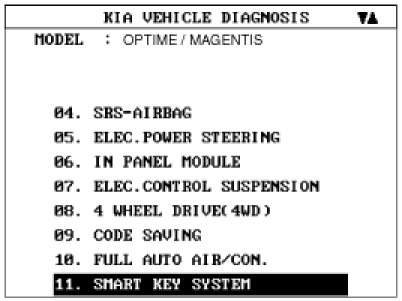

Inspection

PDM Diagnosis With Scan Tool
1. It will be able to diagnose defects of Smart key with scan tool quickly. Scan tool can operates actuator forcefully, input/output value monitoring and self diagnosis.

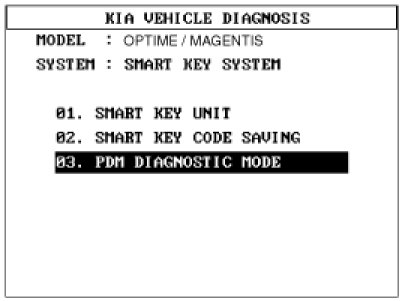

2. Select model and "Smart key system(Button start)" menu if you want to check PDM.




3. Select "PDM" in the manu.

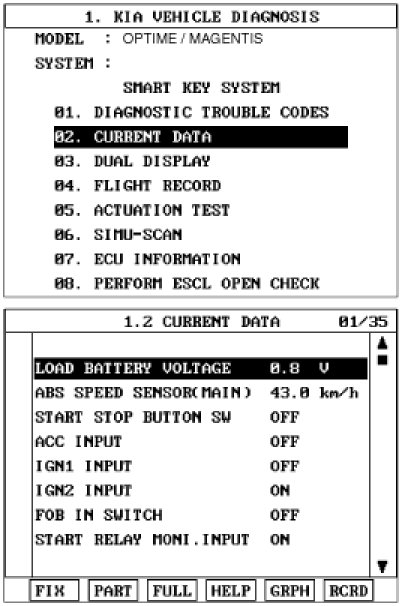

4. Select "Current data", if you want to check current data of PDM. It provides the input/output status of each module.

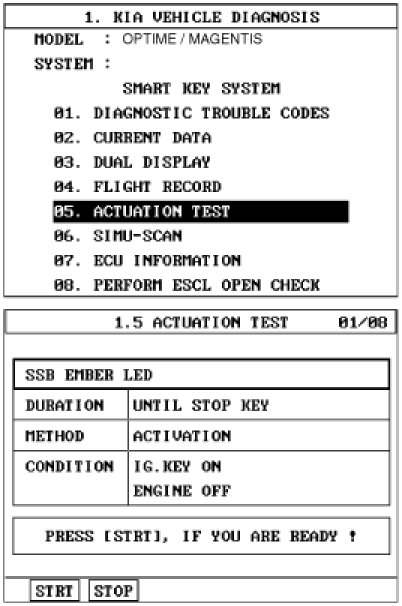

5. If you want to check PDM data operation forcefully, select "Actuation test".

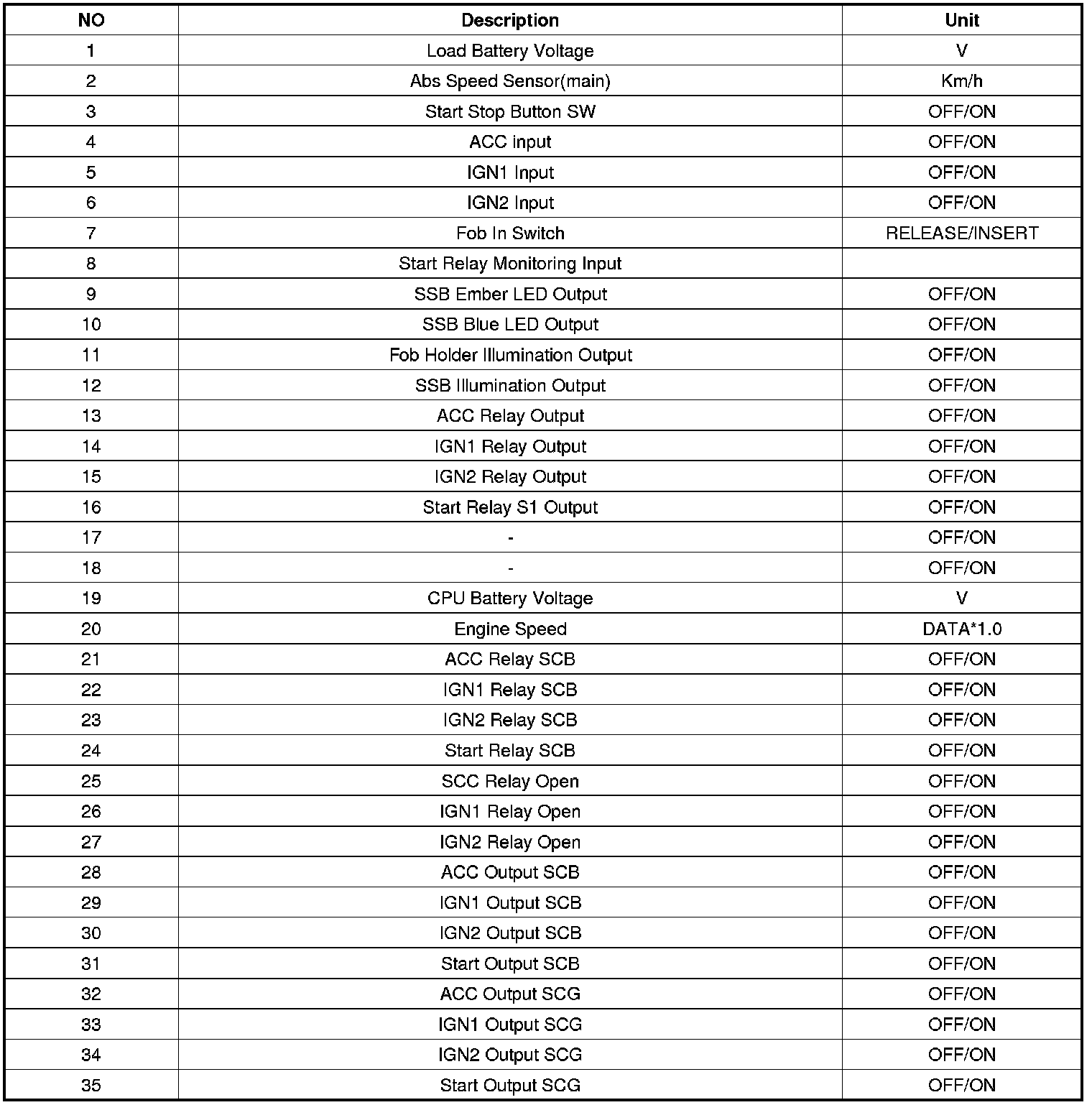

Input/output Current Data

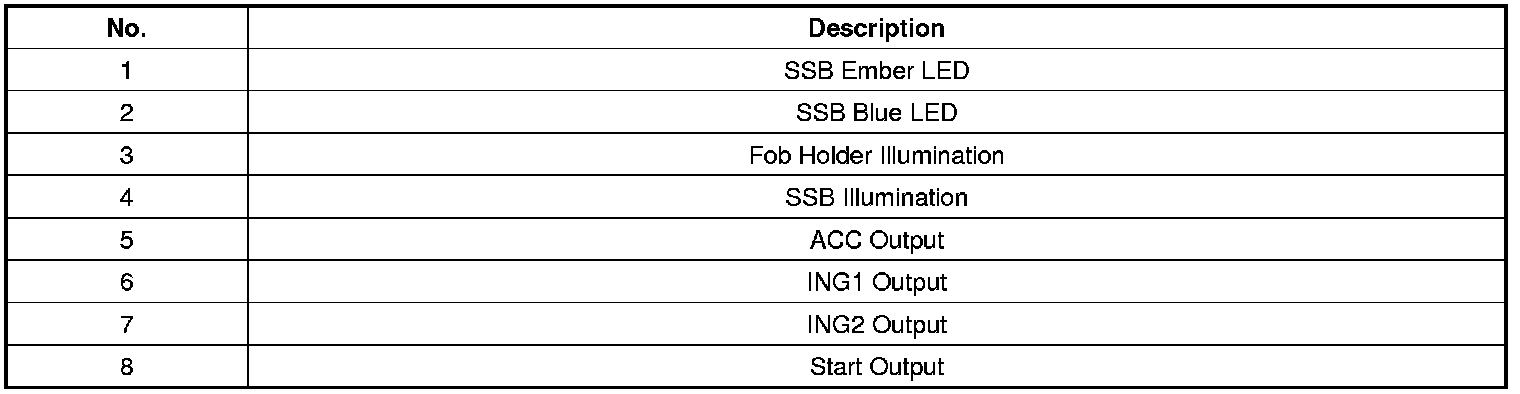

Actuation Test
