Circuit Diagram (1)

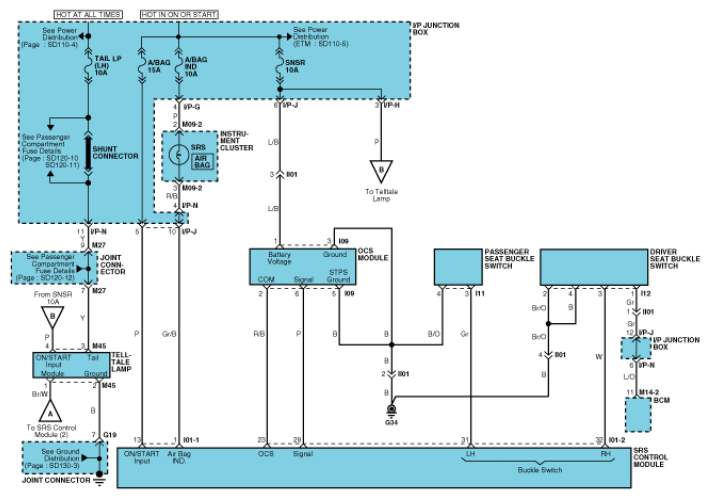

Fig 1: Restraint Circuit Diagram (1)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
