Components (2)

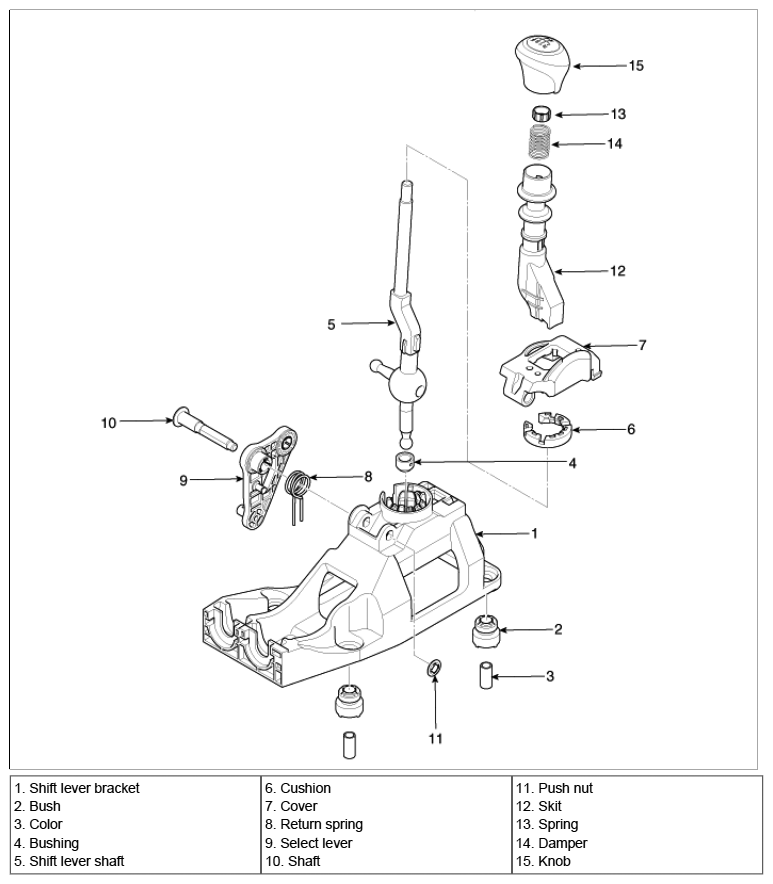

Fig 1: Shift Lever Replacement Components With Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
