Body Control Module

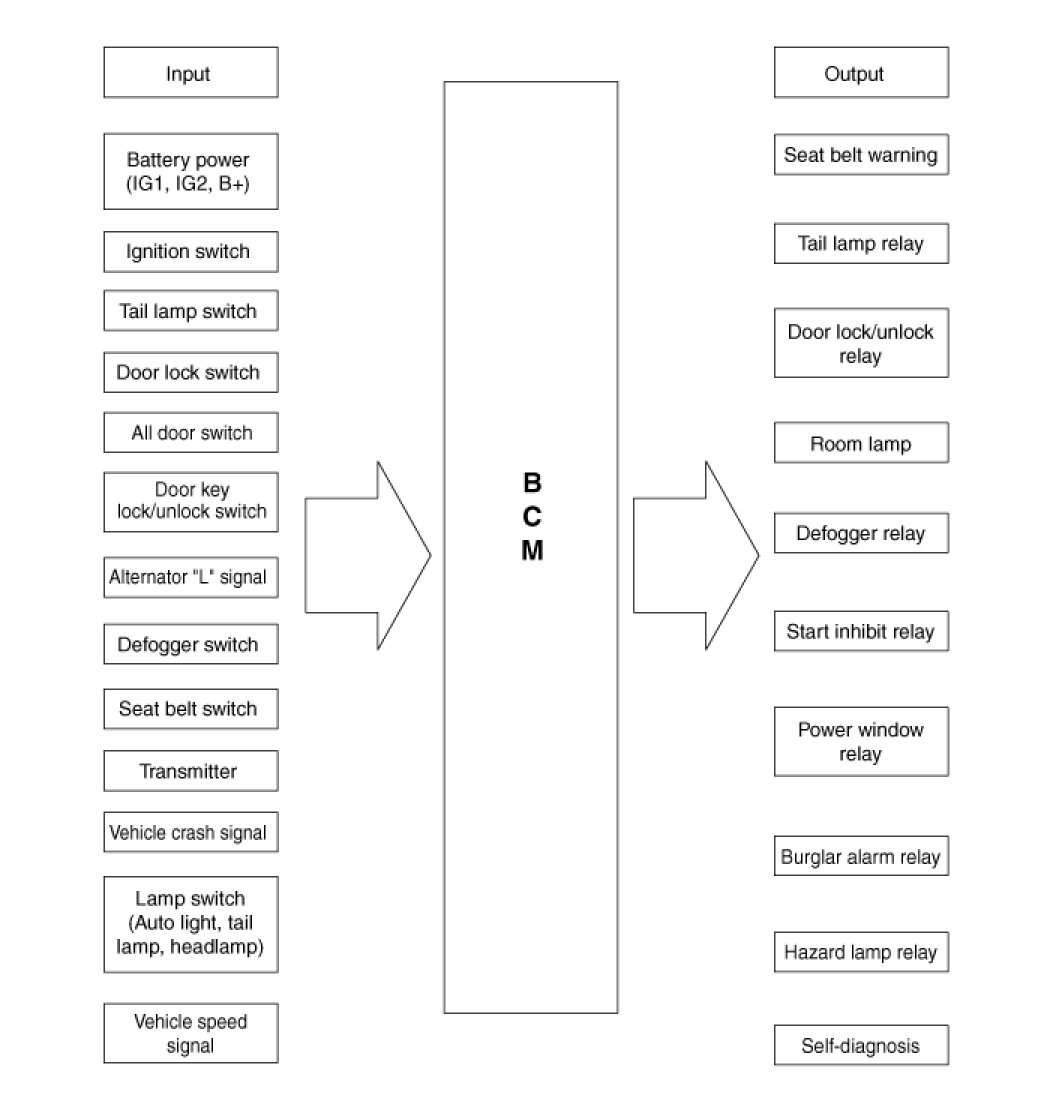

CIRCUIT DIAGRAM

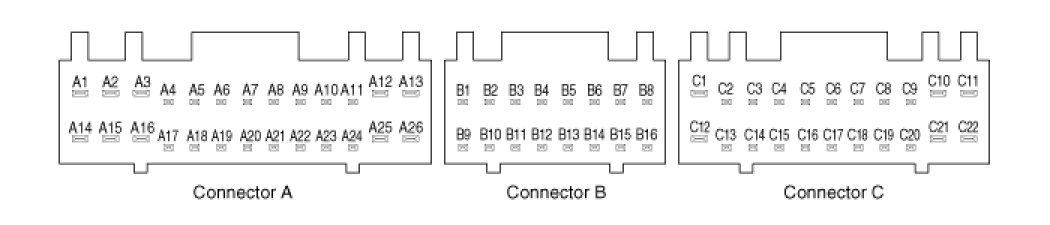

CONNECTOR CONFIGURATIONS

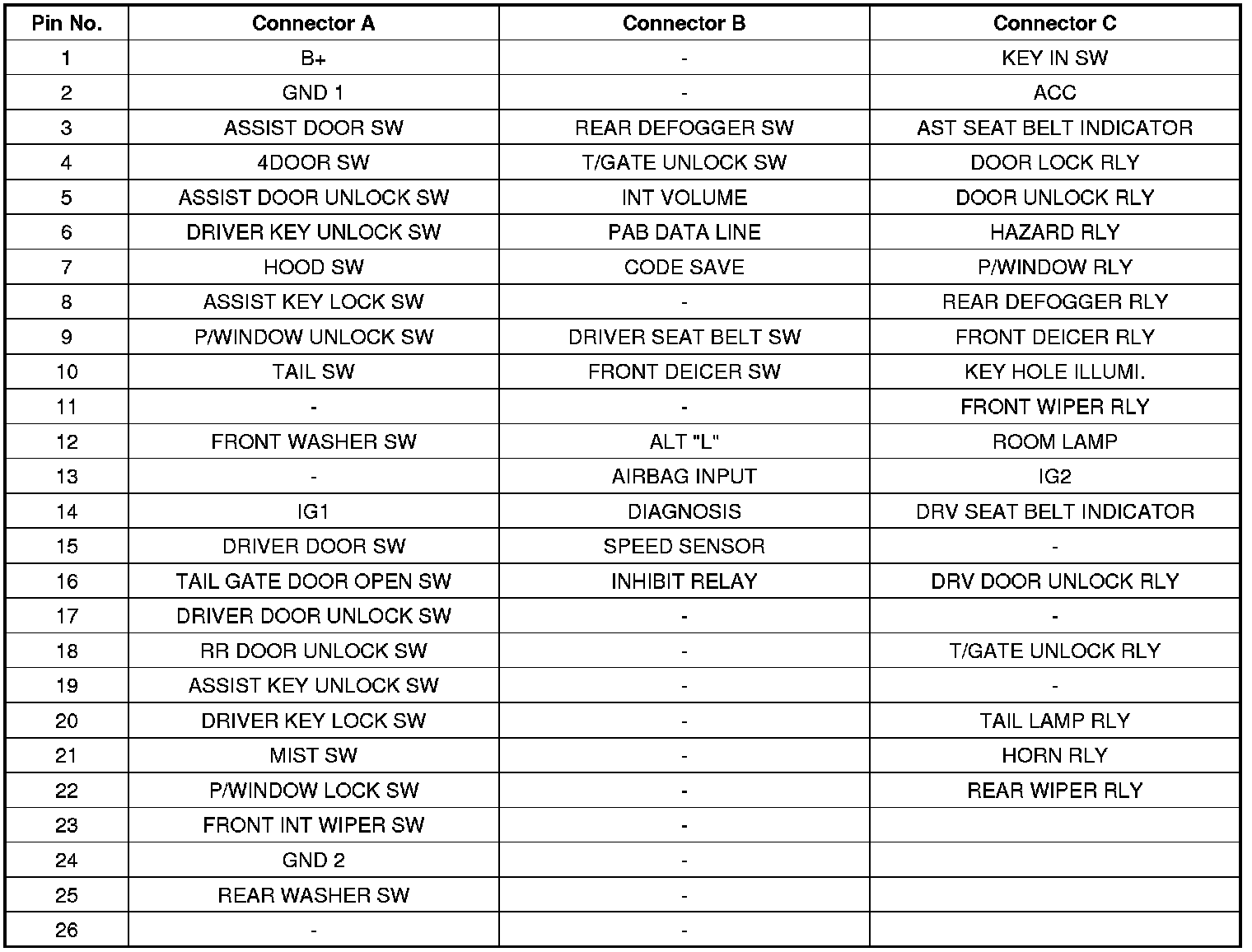

BCM CONNECTORS

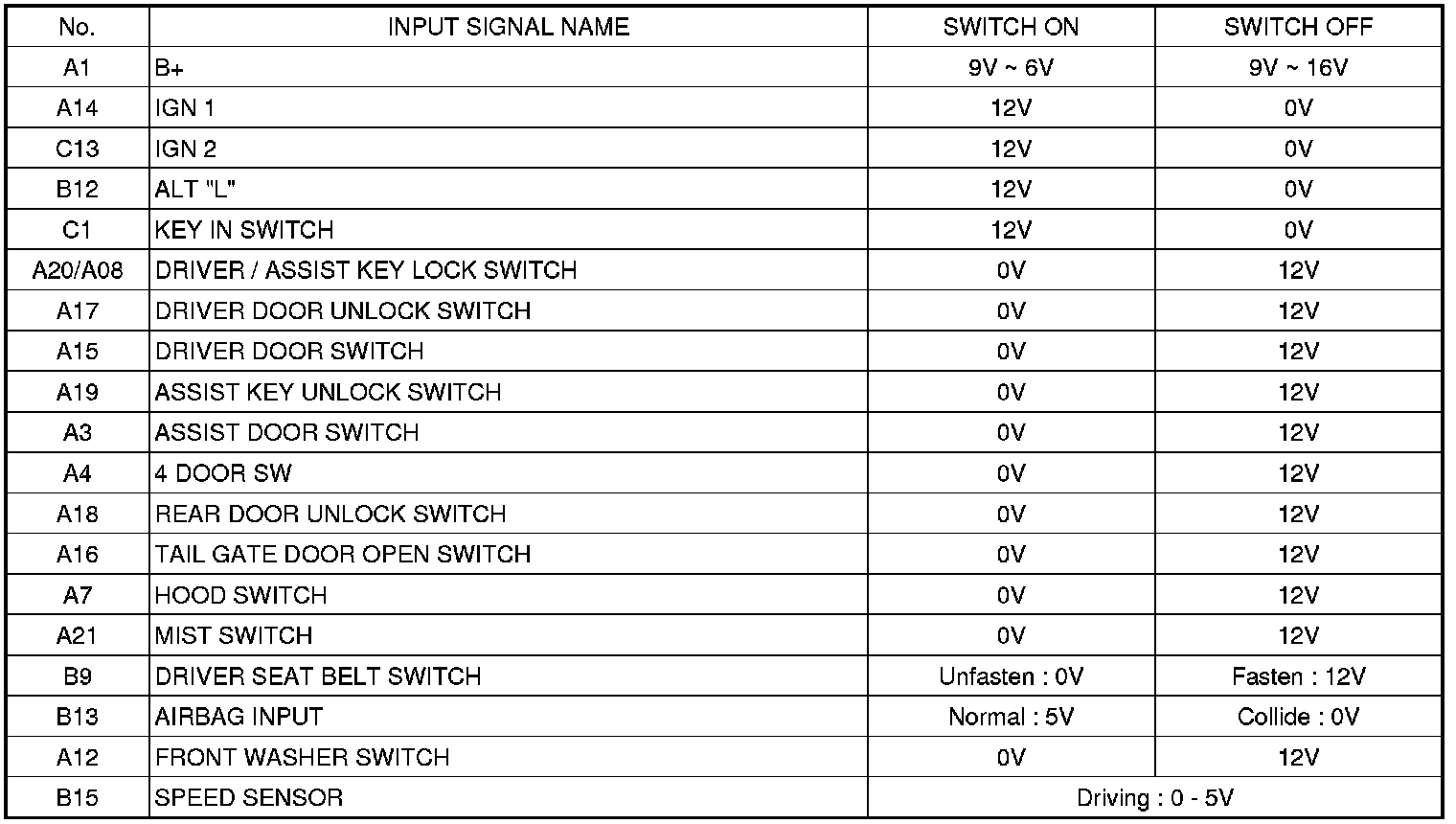

BCM INPUT/OUTPUT SPECIFICATION

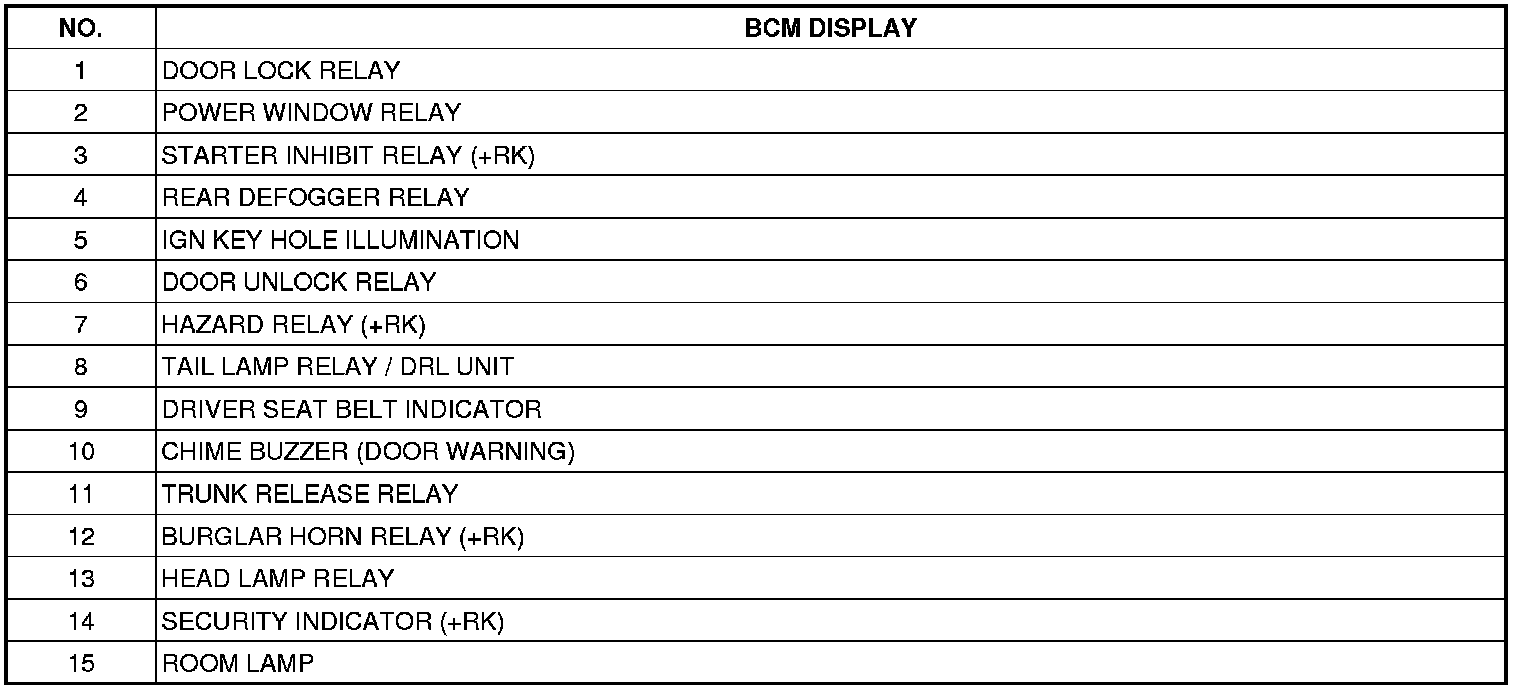

BCM ACTUATOR OPERATION
SCAN tool can operates all actuators controlled by BCM by force.
