Accelerator Position Sensor (APS)
>>
Repair procedures
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

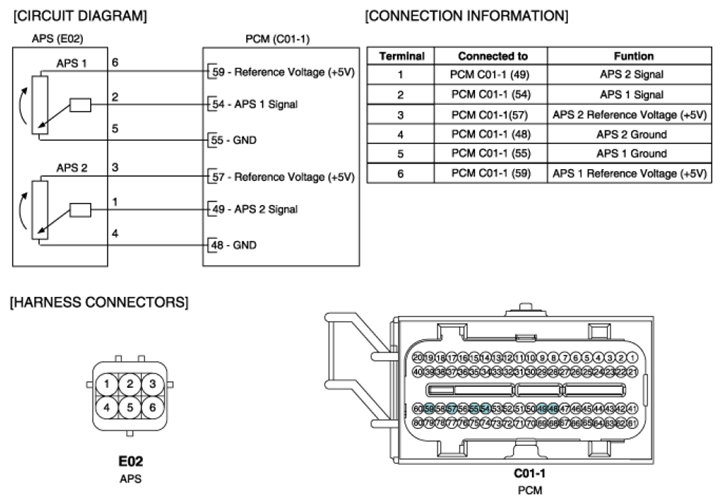

Fig 1: Accelerator Position Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
