CVVT Oil Control Valve (OCV)
>>
Repair procedures
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

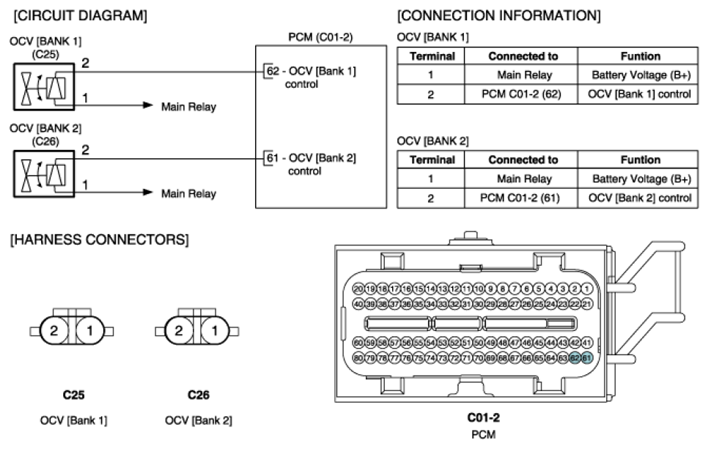

Fig 1: CVVT Oil Control Valve - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
