Schematic Diagram

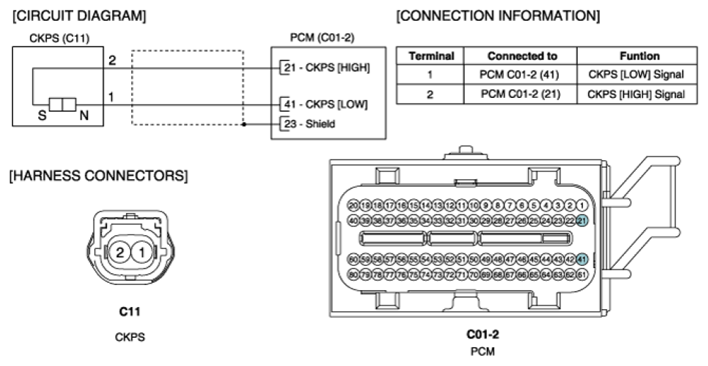

Fig 1: Crankshaft Position Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
