Repair procedures: Description

Knocking is a phenomenon characterized by undesirable vibration and noise and can cause engine damage. Knock Sensor (KS) senses engine knocking and the two sensors are installed inside the V-valley of the cylinder block. When knocking occurs, the vibration from the cylinder block is applied as pressure to the piezoelectric element. At this time, this sensor transfers the voltage signal higher than the specified value to the PCM and the PCM retards the ignition timing. If the knocking disappears after retarding the ignition timing, the PCM will advance the ignition timing. This sequential control can improve engine power, torque and fuel economy.

Fig 1: Identifying Knock Sensor And Connector

Courtesy of KIA MOTORS AMERICA, INC.

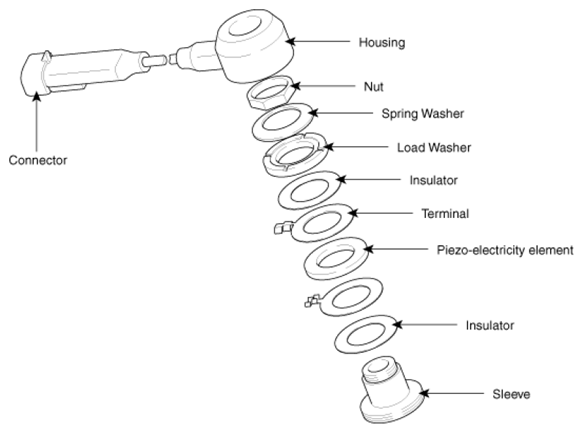

Fig 2: Identifying Knock Sensor Components

Courtesy of KIA MOTORS AMERICA, INC.

SPECIFICATION
