Powertrain Control Module (Pcm)

  1. PCM HARNESS CONNECTOR

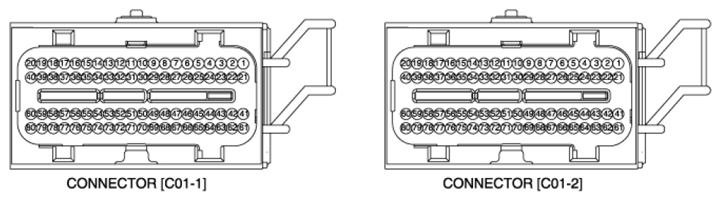

    Fig 1: PCM Harness Connector Terminal Identification
    G06838047Courtesy of KIA MOTORS AMERICA, INC.
  2. PCM TERMINAL FUNCTION

    CONNECTOR [C01-1]

    TERMINALS REFERENCE

    Pin No. Description Connected to
    1 2nd CAN [High] Multi-Purpose Check Connector
    2 2nd CAN [Low] Multi-Purpose Check Connector
    3 For Auto transaxle Control
    4 For Auto transaxle Control
    5 For Auto transaxle Control
    6 For Auto transaxle Control
    7 For Auto transaxle Control
    8 For Auto transaxle Control
    9 For Auto transaxle Control
    10 Power Steering Switch Signal Input Power Steering Switch
    11 -
    12 -
    13 -
    14 -
    15 Alternator load signal input Alternator
    16 Cruise Switch ground Cruise Switch
    17 Fuel Tank Pressure Sensor ground Fuel Tank Pressure Sensor (FTPS)
    18 Air conditioner switch "ON" signal input Air Conditioner Control Module
    19 -
    20 For Auto transaxle Control
    21 Brake switch signal input Brake Switch
    22 -
    23 Brake lamp signal input Brake Lamp
    24 -
    25 Cruise Switch signal input Cruise Switch
    26 Air conditioner blower switch signal input Air Conditioner Control Module
    27 Diagnostic Data Line (K-Line) Data Link Connector (DLC), Multi-Purpose Check Connector
    28 Fuel Tank Pressure Sensor signal input
    29 Fuel level signal input Fuel Level Sensor (FLS)
    30 -
    31 -
    32 A/C Pressure Transducer A/C Pressure Transducer (APT)
    33 Sensor ground A/C Pressure Transducer (APT)
    34 -
    35 -
    36 -
    37 Canister Close Valve (CCV) control output Canister Close Valve (CCV)
    38 Battery voltage supply after main relay Main Relay
    39 Battery voltage supply after main relay Main Relay
    40 Battery voltage supply after main relay Main Relay
    41 CAN [High] ABS Control Module, ESC Control Module
    42 CAN [Low] ABS Control Module, ESC Control Module
    43 Main Relay control output Main Relay
    44 Intake Air Temperature Sensor signal input Intake Air Temperature Sensor (IATS)
    45 Immobilizer communication line Immobilizer
    46 - -
    47 Mass Air Flow Sensor signal input Mass Air Flow Sensor (MAFS)
    48 Accelerator Position Sensor #2 ground Accelerator Position Sensor (APS) #2
    49 Accelerator Position Sensor #2 signal input Accelerator Position Sensor (APS) #2
    50 For Autotransaxle Control
    51 Cruise "SET" lamp control output Cruise "SET" Lamp (Cluster)
    52 Vehicle speed signal input ABS/ESC Control Module
    53 Intake Air Temperature Sensor ground Intake Air Temperature Sensor (IATS)
    54 Accelerator Position Sensor #1 signal input Accelerator Position Sensor (APS) #1
    55 Accelerator Position Sensor #1 ground Accelerator Position Sensor (APS) #1
    56 Fuel Tank Pressure Sensor power supply Fuel Tank Pressure Sensor (FTPS)
    57 Accelerator Position Sensor #2 power supply Accelerator Position Sensor (APS) #2
    58 Sensor Power Supply (+5V) A/C Pressure Transducer (APT)
    59 Accelerator Position Sensor #1 power supply Accelerator Position Sensor (APS) #1
    60 For Auto transaxle Control
    61 Engine speed signal output Cluster (Tachometer)
    62 Fuel consumption signal output Trip Computer
    63 Malfunction Indicator Lamp (MIL) control output Cluster (Malfunction Indicator Lamp)
    64 Air Conditioner Compressor Relay control output Air Conditioner Compressor Relay
    65 -
    66 Cooling Fan control output (PWM) Cooling Fan Control Module
    67 -
    68 -
    69 Cruise "MAIN" lamp control output Cruise "MAIN" Lamp (Cluster)
    70 Fuel Pump Relay control output Fuel Pump Relay
    71 Variable Intake Solenoid Valve control output Variable Intake Solenoid (VIS) Valve
    72 Immobilizer lamp control output Immobilizer Lamp
    73 For Auto transaxle Control
    74 -
    75 -
    76 -
    77 -
    78 Purge Control Solenoid Valve control output Purge Control Solenoid Valve (PCSV)
    79 - -
    80 - -

    CONNECTOR [C01-2]

    TERMINALS REFERENCE

    Pin No. Description Connected to
    1 ETC Motor [-] control output ETC Motor (in ETC Module)
    2 ETC Motor [+] control output ETC Motor (in ETC Module)
    3 For Auto transaxle Control
    4 CVVT Oil Temperature Sensor signal input CVVT Oil Temperature Sensor (OTS)
    5 -
    6 For Autotransaxle Control
    7 Engine Coolant Temperature Sensor signal input Engine Coolant Temperature Sensor (ECTS)
    8 Manifold Absolute Pressure Sensor signal input Manifold Absolute Pressure Sensor (MAPS)
    9 For Auto transaxle Control
    10 For Auto transaxle Control
    11 Manifold Absolute Pressure Sensor power supply Manifold Absolute Pressure Sensor (MAPS)
    12 Battery voltage supply after ignition switch Ignition Switch
    13 Throttle Position Sensor #2 power supply Throttle Position Sensor (TPS) #2
    14 Throttle Position Sensor #1 ground Throttle Position Sensor (TPS) #1
    15 Camshaft Position Sensor [Bank 2] power supply Camshaft Position Sensor (CMPS) [Bank 2]
    16 Throttle Position Sensor #1 power supply Throttle Position Sensor (TPS) #1
    17 Camshaft Position Sensor [Bank 2] ground Camshaft Position Sensor (CMPS) [Bank 2]
    18 Camshaft Position Sensor [Bank 1] ground Camshaft Position Sensor (CMPS) [Bank 1]
    19 Ignition Coil (Cylinder #6) control output Ignition Coil (Cylinder #6)
    20 -
    21 Crankshaft Position Sensor [High] signal input Crankshaft Position Sensor (CKPS)
    22 For Auto transaxle Control
    23 Sensor Shield Crankshaft Position Sensor (CKPS), Knock Sensor (KS) #1,2
    24 Camshaft Position Sensor [Bank 2] signal input Camshaft Position Sensor (CMPS) [Bank 2]
    25 Camshaft Position Sensor [Bank 1] signal input Camshaft Position Sensor (CMPS) [Bank 1]
    26 -
    27 -
    28 Heated Oxygen Sensor [Bank 2/Sensor 1] ground HO2S (B2/S1)
    29 Heated Oxygen Sensor [Bank 2/Sensor 2] ground HO2S (B2/S2)
    30 Heated Oxygen Sensor [Bank 1/Sensor 1] ground HO2S (B1/S1)
    31 Heated Oxygen Sensor [Bank 1/Sensor 2] ground HO2S (B1/S2)
    32 Camshaft Position Sensor [Bank 1] power supply Camshaft Position Sensor (CMPS) [Bank 1]
    33 Engine Coolant Temperature Sensor ground Engine Coolant Temperature Sensor (ECTS)
    34 Sensor ground Manifold Absolute Pressure Sensor (MAPS), CVVT Oil Temperature Sensor (OTS)
    35 Power ground Chassis Ground
    36 Power ground Chassis Ground
    37 Power ground Chassis Ground
    38 Power ground Chassis Ground
    39 Power ground Chassis Ground
    40 Ignition Coil (Cylinder #4) control output Ignition Coil (Cylinder #4)
    41 Crankshaft Position Sensor [Low] signal input Crankshaft Position Sensor (CKPS)
    42 For Auto transaxle Control
    43 For Auto transaxle Control
    44 For Auto transaxle Control
    45 For Auto transaxle Control
    46 -
    47 -
    48 Throttle Position Sensor #1 signal input Throttle Position Sensor (TPS) #1
    49 Heated Oxygen Sensor [Bank 1/Sensor 1] signal input HO2S (B1/S1)
    50 Heated Oxygen Sensor [Bank 1/Sensor 2] signal input HO2S (B1/S2)
    51 Heated Oxygen Sensor [Bank 2/Sensor 1] signal input HO2S (B2/S1)
    52 Heated Oxygen Sensor [Bank 2/Sensor 2] signal input HO2S (B2/S2)
    53 Knock Sensor (KS) #2 [High] signal input Knock Sensor (KS) #2 [High]
    54 Knock Sensor (KS) #2 [Low] signal input Knock Sensor (KS) #2 [Low]
    55 Knock Sensor (KS) #1 [Low] signal input Knock Sensor (KS) #1 [Low]
    56 Knock Sensor (KS) #1 [High] signal input Knock Sensor (KS) #1 [High]
    57 Throttle Position Sensor #2 signal input Throttle Position Sensor (TPS) #2
    58 Throttle Position Sensor #2 ground Throttle Position Sensor (TPS) #2
    59 For Auto transaxle Control
    60 Ignition Coil (Cylinder #2) control output Ignition Coil (Cylinder #2)
    61 CVVT Oil Control Valve [Bank 2] control output CVVT Oil Control Valve (OCV) [Bank 2]
    62 CVVT Oil Control Valve [Bank 1] control output CVVT Oil Control Valve (OCV) [Bank 1]
    63 Injector (Cylinder #2) control output Injector (Cylinder #2)
    64 Injector (Cylinder #3) control output Injector (Cylinder #3)
    65 -
    66 -
    67 Heated Oxygen Sensor [Bank 2/Sensor 1] Heater control output HO2S (B2/S1)
    68 Injector (Cylinder #4) control output Injector (Cylinder #4)
    69 Injector (Cylinder #5) control output Injector (Cylinder #5)
    70 Heated Oxygen Sensor [Bank 1/Sensor 1] Heater control output HO2S (B1/S1)
    71 Injector (Cylinder #6) control output Injector (Cylinder #6)
    72 Injector (Cylinder #1) control output Injector (Cylinder #1)
    73 Heated Oxygen Sensor [Bank 2/Sensor 2] Heater control output HO2S (B2/S2)
    74 Heated Oxygen Sensor [Bank 1/Sensor 2] Heater control output HO2S (B1/S2)
    75 For Auto transaxle Control
    76 Battery Power Battery
    77 Ignition Coil (Cylinder #3) control output Ignition Coil (Cylinder #3)
    78 Ignition Coil (Cylinder #5) control output Ignition Coil (Cylinder #5)
    79 Ignition Coil (Cylinder #1) control output Ignition Coil (Cylinder #1)
    80 -
  3. PCM TERMINAL INPUT/OUTPUT SIGNAL

    CONNECTOR [C01-1]

    TERMINALS REFERENCE

    Pin No. Description Condition Type Level Test Result
    1 2nd CAN [High] Idle DC 2.0 ~ 3.0V 2.5V
    2 2nd CAN [Low] Idle   2.0 ~ 3.0V 2.5V
    3 For Auto transaxle Control
    4 For Auto transaxle Control
    5 For Auto transaxle Control
    6 For Auto transaxle Control
    7 For Auto transaxle Control
    8 For Auto transaxle Control
    9 For Auto transaxle Control
    10 Power Steering Switch signal input
    11 -
    12 -
    13 -
    14 -
    15 Alternator load signal input Idle PULSE High: Battery Voltage 13.6V
    Low: Max. 1.5V 0V
    140 ~ 190Hz 160Hz
    16 Cruise Switch ground
    17 Fuel Tank Pressure Sensor ground Idle DC Max. 50mV 30mV
    18 Air conditioner switch "ON" signal input A/CON Relay OFF DC Battery Voltage 9.1V
    A/CON Relay ON Max. 1.0V 0.1V
    19 -
    20 For Auto transaxle Control
    21 Brake switch signal input Brake pedal releasing DC Battery Voltage 12.7V
    Brake pedal pressing Max. 0.5V 0.03V
    22 -
    23 Brake lamp signal input Brake pedal releasing DC Max. 0.5V 0V
    Brake pedal pressing Battery Voltage 13.0V
    24 -
    25 Cruise Switch signal input
    26 Air conditioner blower switch signal input A/CON OFF DC Max. 1.0V 0V
    A/CON ON Battery Voltage 11.9V
    27 Diagnostic Data Line (K-Line) When transmitting PULSE High: Min. Vbatt□80% 11.3V
    Low: Max. Vbatt□20% 0.14V
    When receiving High: Min. Vbatt□70% 11.3V
    Low: Max. Vbatt□30% 0.32V
    28 Fuel Tank Pressure Sensor signal input
    29 Fuel level signal input
    30 -
    31 -
    32 A/C Pressure Transducer signal input A/CON OFF DC 0 ~ 5.0V
    A/CON ON 1.85 ~ 2.2V
    33 Sensor ground Idle DC Max. 50mV 40mV
    34 -
    35 -
    36 -
    37 Canister Close Valve Control output
    38 Battery voltage supply after main relay IG OFF DC Max. 1.0V 0V
    IG ON Battery Voltage 12.1V
    39 Battery voltage supply after main relay IG OFF DC Max. 1.0V 0V
    IG ON Battery Voltage 12.1V
    40 Battery voltage supply after main relay IG OFF DC Max. 1.0V 0V
    IG ON Battery Voltage 12.1V
    41 CAN [High] RECESSIVE PULSE 2.0 ~ 3.0V 3.85V
    DOMINANT 2.75~4.5V 2.5V
    42 CAN [Low] RECESSIVE PULSE 2.0 ~ 3.0V 2.55V
    DOMINANT 2.75~4.5V 1.34V
    43 Main Relay control output Relay ON DC Battery Voltage 12.3V
    Relay OFF Max. 1.0V 0.87V
    44 Intake Air Temperature Sensor signal input Idle Analog 0 ~ 5.0V 1.86V
    45 Immobilizer communication line
    46 - - - - -
    47 Mass Air Flow Sensor signal input Idle PULSE High: Vref 5.04V
    Low: Max. 0.5V 0.27V
    Idle: 3.0KHz
    3,000 rpm High: Vref 5.04V
    Low: Max. 0.5V 0.27V
    3000rpm: 4.5 kHz
    48 Accelerator Position Sensor #2 ground Idle DC Max. 50mV 35mV
    49 Accelerator Position Sensor #2 signal input C.T Analog 0.3 ~ 0.9V 0.4V
    W.O.T 1.5 ~ 3.0V 2.1V
    50 For Auto transaxle Control
    51 Cruise "SET" lamp control output
    52 Vehicle speed signal input Vehicle running PULSE High: Min. 5.0V 12.6V
    Low: Max. 1.0V 0.2V
    53 Intake Air Temperature Sensor ground Idle DC DC Max. 50mV 34mV
    54 Accelerator Position Sensor #1 signal input C.T Analog 0.3 ~ 0.9V 0.77V
    W.O.T 4.0 ~ 4.8V 4.23V
    55 Accelerator Position Sensor #1 ground Idle DC DC Max. 50mV 36mV
    56 Fuel Tank Pressure Sensor power supply IG OFF DC Max. 0.5V 0V
    IG ON 4.9 ~ 5.1V 5.01V
    57 Accelerator Position Sensor #2 power supply IG OFF DC Max. 0.5V 0V
    IG ON 4.9 ~ 5.1V 5.08V
    58 Sensor Power Supply (+5V) IG OFF   Max. 0.5V 0V
    IG ON 4.9 ~ 5.1V 5.08V
    59 Accelerator Position Sensor #1 power supply IG OFF DC Max. 0.5V 0V
    IG ON 4.9 ~ 5.1V 5.08V
    60 For Auto transaxle Control
    61 Engine speed signal output Idle PULSE High: Battery Voltage 13.0V
    Low: Max. 0.5V 0V
    20~26Hz 35Hz
    62 Fuel consumption signal output Idle PULSE High: Battery Voltage or Vref 12.8V
    Low: Max. 0.5V 0V
    63 Malfunction Indicator Lamp (MIL) control output MIL OFF DC High: Battery Voltage 4.24V
    MIL ON Low: Max. 2.0V 0V
    64 Air Conditioner Compressor Relay control output A/CON OFF DC Battery Voltage 13.0V
    A/CON ON Max. 1.0V 0.14V
    65 -
    66 Cooling Fan control output (PWM) A/CON ON PULSE High: Vref 12.3V
    Low: 0 ~ 0.5 V 0V
      300Hz
    67 -
    68 -
    69 Cruise "CRUISE" lamp control output
    70 Fuel Pump Relay control output Relay OFF DC Battery Voltage 12.5V
    Relay ON Max. 1.0V 0.09V
    71 Variable Intake Solenoid Valve control output Active DC Max. 1.0V 0.1V
    Inactive Battery Voltage 12.4V
    72 Immobilizer lamp control output
    73 For Auto transaxle Control
    74 -
    75 -
    76 -
    77 -
    78 Purge Control Solenoid Valve control output Inactive Active PULSE High: Battery Voltage 13.2V
    Low: Max. 1.0V 0.08V
      16Hz
    79 -
    80 -

    CONNECTOR [C01-2]

    TERMINALS REFERENCE

    Pin No. Description Condition Type Level Test Result
    1 ETC Motor [-] control output Idle PULSE High: Battery Voltage 13.3V
    Low: Max. 1.0V 0.3V
      3.14KHz
    2 ETC Motor [+] control output Idle PULSE High: Battery Voltage 13.3V
    Low: Max. 1.0V 0.4V
      3.14KHz
    3 For Autotransaxle Control
    4 CVVT Oil Temperature Sensor signal input Idle Analog 0.5 ~ 4.5V 1.68V
    5 -
    6 For Auto transaxle Control
    7 Engine Coolant Temperature Sensor signal input Idle Analog 0.5 ~ 4.5V 0.47V
    8 Manifold Absolute Pressure Sensor signal input IG ON Analog 3.9 ~ 4.1V 4.01V
    Idle 0.8 ~ 1.6V 1.59V
    9 For Auto transaxle Control
    10 For Auto transaxle Control
    11 Manifold Absolute Pressure Sensor power supply IG OFF DC Max. 0.5V 0V
    IG ON 4.9 ~ 5.1V 5.08V
    12 Battery voltage supply after ignition switch IG OFF DC Max. 0.5V 0V
    IG ON Battery Voltage 12.2V
    13 Throttle Position Sensor #2 power supply IG OFF DC Max. 0.5V 0V
    IG ON 4.9 ~ 5.1V 5.05V
    14 Throttle Position Sensor #1 ground Idle DC Max. 50mV 30mV
    15 Camshaft Position Sensor [Bank 2] power supply IG OFF DC Max. 0.5V 0V
    IG ON 4.9 ~ 5.1V 5.06V
    16 Throttle Position Sensor #1 power supply IG OFF DC Max. 0.5V 0V
    IG ON 4.9 ~ 5.1V 5.06V
    17 Camshaft Position Sensor [Bank 2] ground Idle DC Max. 50mV 30mV
    18 Camshaft Position Sensor [Bank 1] ground Idle DC Max. 50mV 30mV
    19 Ignition Coil (Cylinder #6) control output Idle PULSE 1st: 300~400V 272V
    ON: Max. 2V 1.2V
      5.8Hz
    20 -
    21 Crankshaft Position Sensor [High] signal input Idle Sine Wave Vp_p: Min.1.0V 8V
      700Hz
    22 For Autotransaxle Control
    23 Sensor Shield Idle DC Max. 50mV 32mV
    24 Camshaft Position Sensor [Bank 2] signal input Idle PULSE High: Vref 5.08V
    Low: Max. 0.5V 0.06V
      40Hz
    25 Camshaft Position Sensor [Bank 1] signal input Idle PULSE High: Vref 5.08V
    Low: Max. 0.5V 0.06V
      40Hz
    26 -
    27 -
    28 Heated Oxygen Sensor [Bank 2/Sensor 1] ground Idle DC Max. 50mV 27mV
    29 Heated Oxygen Sensor [Bank 2/Sensor 2] ground Idle DC Max. 50mV 27mV
    30 Heated Oxygen Sensor [Bank 1/Sensor 1] ground Idle DC Max. 50mV 26V
    31 Heated Oxygen Sensor [Bank 1/Sensor 2] ground Idle DC Max. 50mV 27mV
    32 Camshaft Position Sensor [Bank 1] power supply IG OFF DC Max. 0.5V 0V
    IG ON 4.9 ~ 5.1V 5.06V
    33 Engine Coolant Temperature Sensor ground Idle DC Max. 50mV 13mV
    34 Sensor ground Idle DC Max. 50mV 13mV
    35 Power ground Idle DC Max. 50mV 0mV
    36 Power ground Idle DC Max. 50mV 0mV
    37 Power ground Idle DC Max. 50mV 0mV
    38 Power ground Idle DC Max. 50mV 2mV
    39 Power ground Idle DC Max. 50mV 2mV
    40 Ignition Coil (Cylinder #4) control output Idle PULSE 1st: 300~400V 263V
    ON: Max. 2V 1.4V
      5.8Hz
    41 Crankshaft Position Sensor [Low] signal input Idle Sine Wave Vp_p: Min.1.0V 8V
      700Hz
    42 For Auto transaxle Control
    43 For Auto transaxle Control
    44 For Auto transaxle Control
    45 For Auto transaxle Control
    46 -
    47 -
    48 Throttle Position Sensor #1 signal input C.T Analog 0.25 ~ 0.9V
    W.O.T Min. 4.0V
    49 Heated Oxygen Sensor [Bank 1/Sensor 1] signal input Engine Running DC Rich: 0.6 ~ 1.0V 0.95V
    Lean: 0 ~ 0.4V 0.13V
    50 Heated Oxygen Sensor [Bank 1/Sensor 2] signal input Engine Running DC Rich: 0.6 ~ 1.0V 0.88V
    Lean: 0 ~ 0.4V 0.21V
    51 Heated Oxygen Sensor [Bank 2/Sensor 1] signal input Engine Running DC Rich: 0.6 ~ 1.0V 0.91V
    Lean: 0 ~ 0.4V 0.18V
    52 Heated Oxygen Sensor [Bank 2/Sensor 2] signal input Engine Running DC Rich: 0.6 ~ 1.0V 0.89V
    Lean: 0 ~ 0.4V 0.22V
    53 Knock Sensor (KS) #2 [High] signal input Knocking Variable Frequency -0.3 ~ 0.3 V 1.7V
    Normal 0 V
    54 Knock Sensor (KS) #2 [Low] signal input Knocking Variable Frequency -0.3 ~ 0.3 V 1.7V
    Normal 0 V
    55 Knock Sensor (KS) #1 [Low] signal input Knocking Variable Frequency -0.3 ~ 0.3 V 1.7V
    Normal 0 V
    56 Knock Sensor (KS) #1 [High] signal input Knocking Variable Frequency -0.3 ~ 0.3 V 1.7V
    Normal 0 V
    57 Throttle Position Sensor #2 signal input C.T Analog Min. 4.0V
    W.O.T 0.25 ~ 0.9V
    58 Throttle Position Sensor #2 ground Idle DC Max. 50mV 17mV
    59 For Auto transaxle Control
    60 Ignition Coil (Cylinder #2) control output Idle PULSE 1st: 300~400V 266V
    ON: Max. 2V 1.3V
      5.8Hz
    61 CVVT Oil Control Valve [Bank 2] control output Idle PULSE Battery Voltage 14.5V
    Max. 1.0V 0.1V
    Duty variance when operating the accelerator 128Hz
    62 CVVT Oil Control Valve [Bank 1] control output Idle PULSE Battery Voltage 14.3V
    Max. 1.0V 0.1V
    Duty variance when operating the accelerator 128Hz
    63 Injector (Cylinder #2) control output Idle PULSE High: Battery Voltage 13.8V
    Low: Max. 1.0V 0.13V
    Vpeak: Max. 80V 57.5V
      5.8Hz
    64 Injector (Cylinder #3) control output Idle PULSE High: Battery Voltage 13.8V
    Low: Max. 1.0V 0.13V
    Vpeak: Max. 80V 56.8V
      5.8Hz
    65 -
    66 -
    67 Heated Oxygen Sensor [Bank 2/Sensor 1] Heater control output Engine Running PULSE High: Battery Voltage 13.8V
    Low: Max. 1.0V 0.17V
      16Hz
    68 Injector (Cylinder #4) control output Idle PULSE High: Battery Voltage 13.8V
    Low: Max. 1.0V 0.13V
    Vpeak: Max. 80V 56.8V
      5.8Hz
    69 Injector (Cylinder #5) control output Idle PULSE High: Battery Voltage 13.7V
    Low: Max. 1.0V 0.13V
    Vpeak: Max. 80V 56.8V
      5.8Hz
    70 Heated Oxygen Sensor [Bank 1/Sensor 1] Heater control output Engine Running PULSE High: Battery Voltage 13.8V
    Low: Max. 1.0V 0.17V
      16Hz
    71 Injector (Cylinder #6) control output Idle PULSE High: Battery Voltage 13.8V
    Low: Max. 1.0V 0.13V
    Vpeak: Max. 80V 56.8V
      5.8Hz
    72 Injector (Cylinder #1) control output Idle PULSE High: Battery Voltage 13.8V
    Low: Max. 1.0V 0.13V
    Vpeak: Max. 80V 56.8V
      5.8Hz
    73 Heated Oxygen Sensor [Bank 2/Sensor 2] Heater control output Engine Running PULSE High: Battery Voltage 13.9V
    Low: Max. 1.0V 0.19V
      16Hz
    74 Heated Oxygen Sensor [Bank 1/Sensor 2] Heater control output Engine Running PULSE High: Battery Voltage 13.9V
    Low: Max. 1.0V 0.18V
      16Hz
    75 For Auto transaxle Control
    76 Battery Power Always DC Battery Voltage 13.0V
    77 Ignition Coil (Cylinder #3) control output Idle PULSE 1st: 300~400V 266V
    ON: Max. 2V 1.4V
      5.8Hz
    78 Ignition Coil (Cylinder #5) control output Idle PULSE 1st: 300~400V 267V
    ON: Max. 2V 1.4V
      5.8Hz
    79 Ignition Coil (Cylinder #1) control output Idle PULSE 1st: 300~400V 268V
    ON: Max. 2V 1.4V
      5.8Hz
    80 -
scientia non olet · About LEMON Manuals
