Repair procedures (A5HF1): Installation

Install the shift cable mounting nut (A) and cap (B).
TORQUE:

10~14 Nm (100~140 kgf.cm, 7.3~10.2 lb-ft)

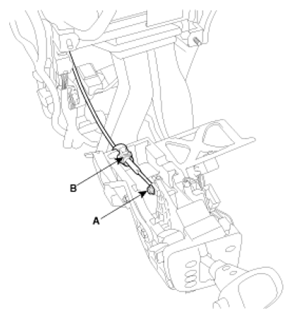

Fig 1: Identifying Shift Cable Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift lever assembly mounting nuts (A).
TORQUE:

19~24 Nm (190~240 kgf.cm, 13.8~17.5 lb-ft)

Fig 2: Identifying Shift Lever Assembly Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Connect the connector (A).

Fig 3: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install the front console cover (A). (see CONSOLE )

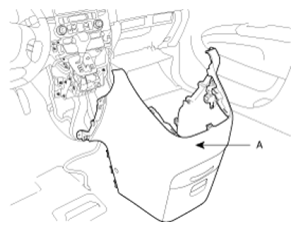

Fig 4: Identifying Front Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install the console upper cover (A). (see CONSOLE ).

Fig 5: Identifying Console Upper Cover

Courtesy of KIA MOTORS AMERICA, INC.
