Components (2)

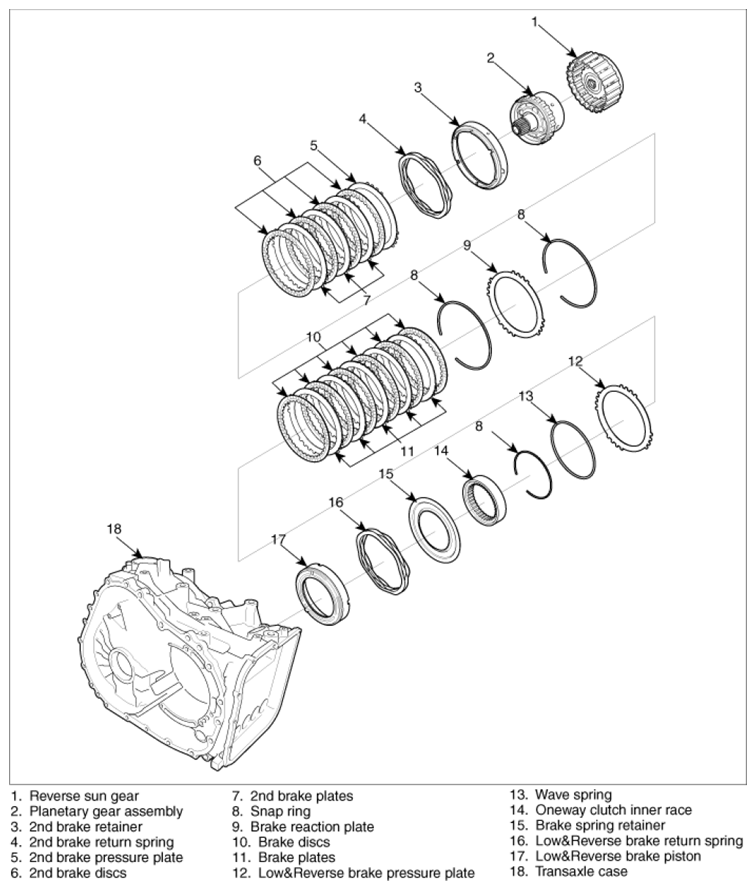

Fig 1: Identifying Automatic Transaxle Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
