Repair procedures (A5HF1): Reassembly

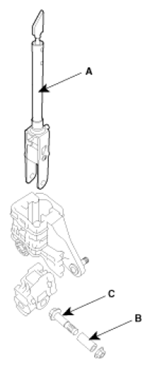

Grease the tube (B) and install the lever (A) by tightening the bolt (C).
TORQUE:

8~12 Nm (80~120 kgf.cm, 5.8~8.7 lb-ft)

Fig 1: Identifying Lever
Courtesy of KIA MOTORS AMERICA, INC.

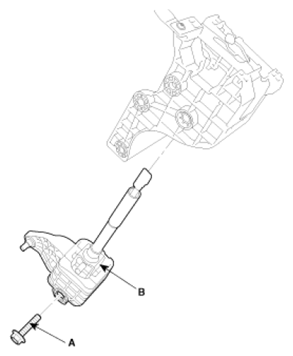

Install the lever assembly (B) by tightening the bolt (A).
TORQUE:

8~12 Nm (80~120 kgf.cm, 5.8~8.7 lb-ft)

Fig 2: Identifying Lever Assembly Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the solenoid (B) and solenoid lever (A).

Fig 3: Identifying Solenoid Lever
Courtesy of KIA MOTORS AMERICA, INC.
Install the switch assembly (A) and 'P' position switch assembly.
TORQUE:

1.3~1.9 Nm (13~19 kgf.cm, 0.95~1.38 lb-ft)

Fig 4: Identifying Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Connect the solenoid connector (A) and install the indicator panel (B).

Fig 5: Identifying Solenoid Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift lever knob (A) by tightening the two screws.
TORQUE:

2~3 Nm (20~30 kgf.cm, 1.45~2.18 lb-ft)

Fig 6: Identifying Shift Lever Knob
Courtesy of KIA MOTORS AMERICA, INC.
Install both sides of the brackets.
TORQUE:

16~23 Nm (160~230 kgf.cm, 11.6~16.7 lb-ft)
Install the adjusting pedal relay (A) to the bracket.

Fig 7: Identifying Adjusting Pedal Relay

Courtesy of KIA MOTORS AMERICA, INC.
