Repair procedures (A5HF1): Removal

Remove the console upper cover (A). (see CONSOLE ).

Fig 1: Identifying Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.

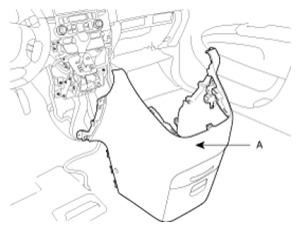

Remove the front console cover (A). (see CONSOLE ).

Fig 2: Identifying Front Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

Fig 3: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift lever assembly mounting nuts (A).

Fig 4: Identifying Shift Lever Assembly Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

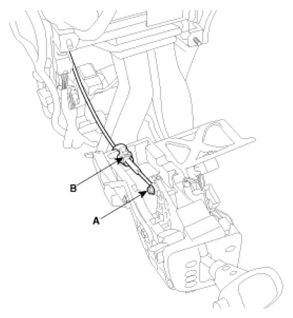

Remove the shift cable mounting nut (A) and cap (B).

Fig 5: Identifying Shift Cable Mounting Nut And Cap

Courtesy of KIA MOTORS AMERICA, INC.
