Variant Coding Procedure

On-Line Type On GDS
1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as follows:

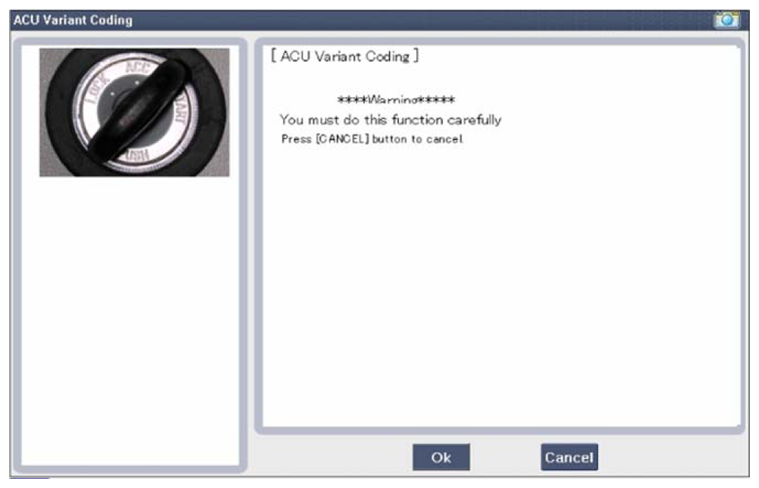

  1. Initial ACU Variant Coding screen

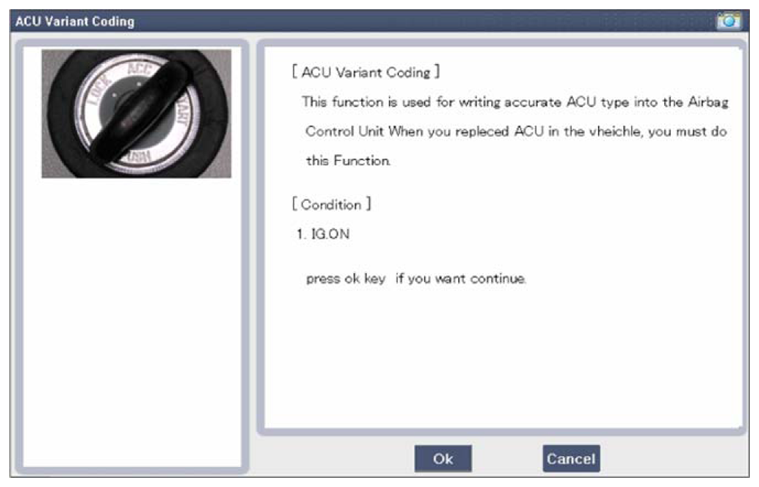

    Fig 1: Screen Display - ACU Variant Coding - On-Line Type On GDS (1 Of 5)
    Courtesy of KIA MOTORS AMERICA, INC.
  2. VIN Code entering screen

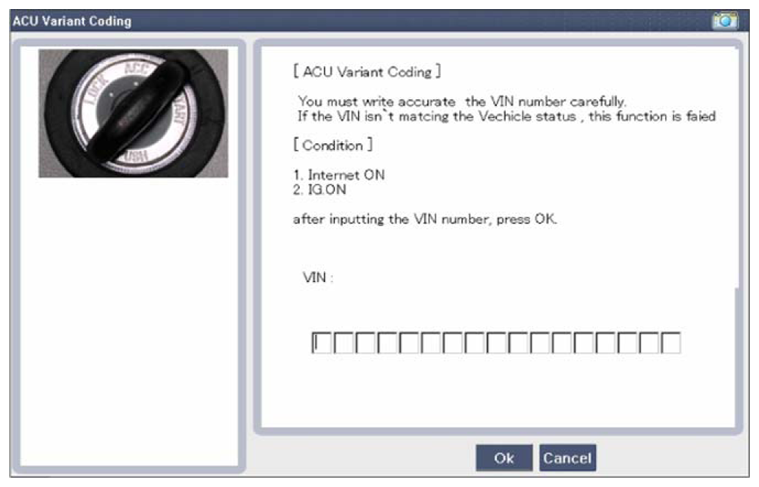

    Fig 2: Screen Display - ACU Variant Coding - On-Line Type On GDS (2 Of 5)
    Courtesy of KIA MOTORS AMERICA, INC.

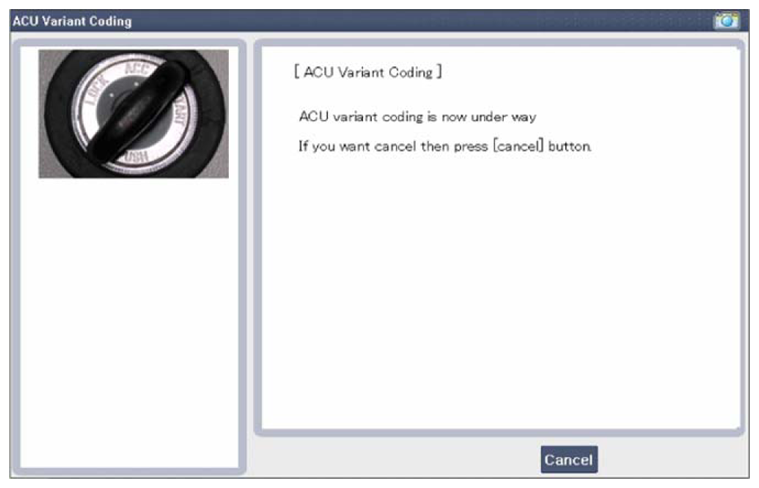

  3. Variant coding's proceeding screen-1

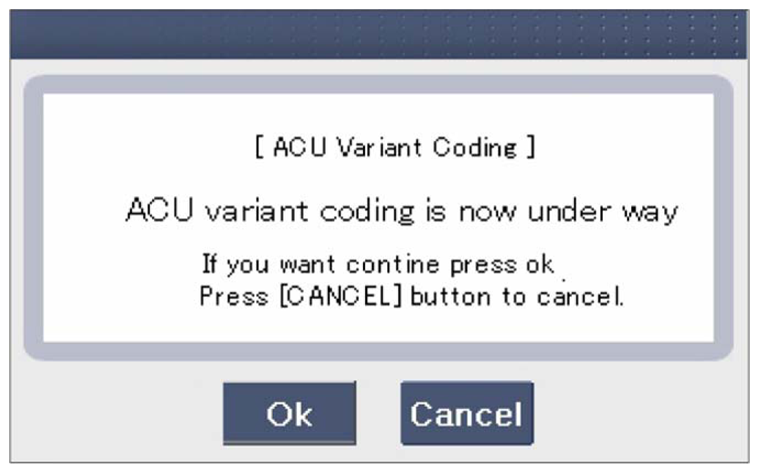

    Fig 3: Screen Display - ACU Variant Coding - On-Line Type On GDS (3 Of 5)
    Courtesy of KIA MOTORS AMERICA, INC.
  4. Variant coding's proceeding screen-2

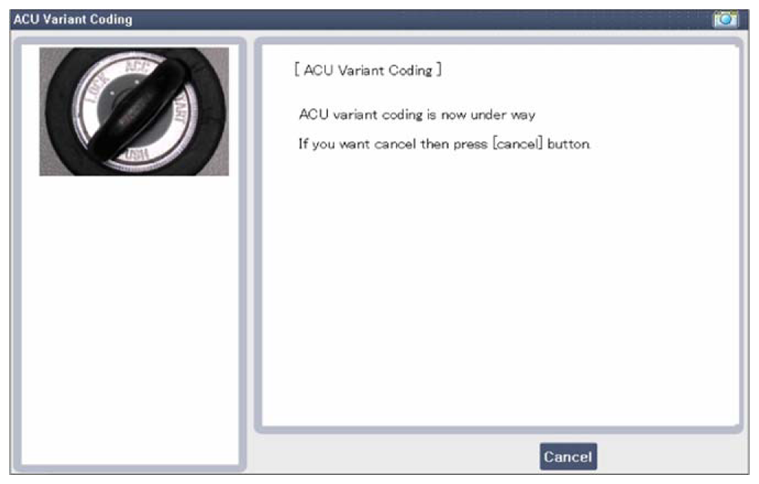

    Fig 4: Screen Display - ACU Variant Coding - On-Line Type On GDS (4 Of 5)
    Courtesy of KIA MOTORS AMERICA, INC.
  5. Variant coding is completed

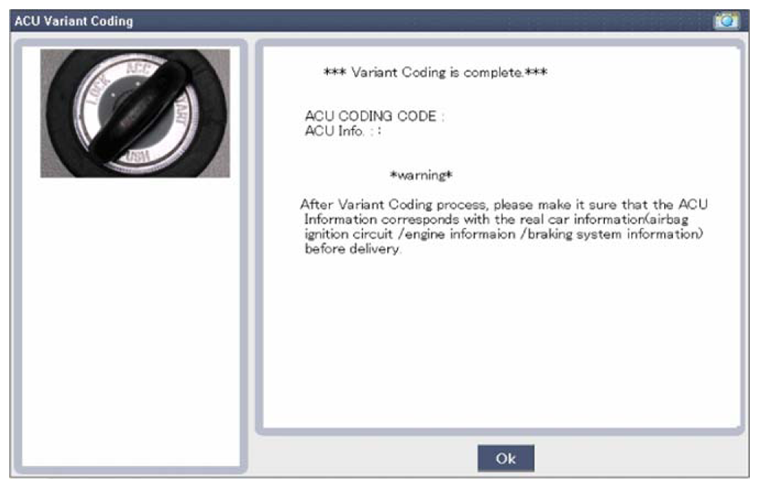

    Fig 5: Screen Display - ACU Variant Coding - On-Line Type On GDS (5 Of 5)
    Courtesy of KIA MOTORS AMERICA, INC.
  NOTE:
  1. Screen of Retrying the Variant coding after finishing variant coding

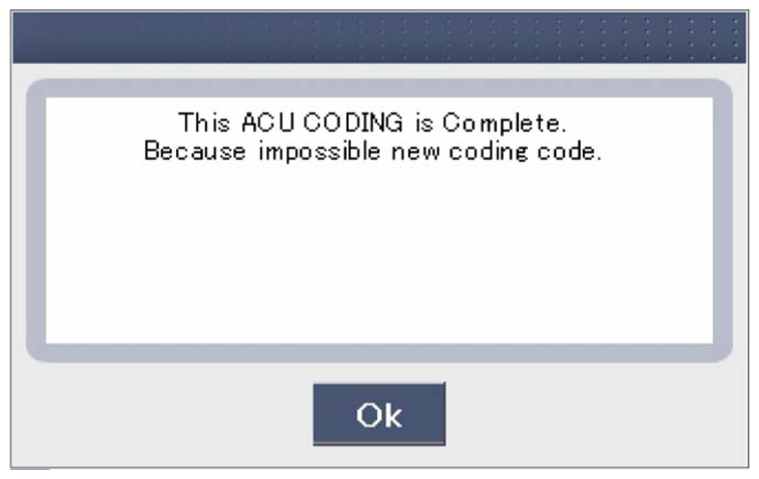

    Fig 6: Screen Display - Retrying Variant Coding After Finishing Variant Coding
    Courtesy of KIA MOTORS AMERICA, INC.

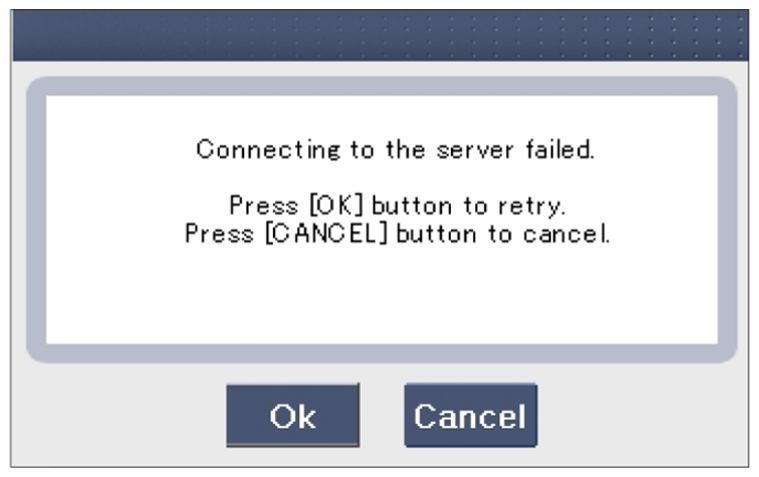

  2. Screen of communication failure

    Fig 7: Screen Display - Communication Failure
    Courtesy of KIA MOTORS AMERICA, INC.

Off-Line Type On GDS (this can be used when not connecting to Internet)
1. Initial ACU Variant Coding screen

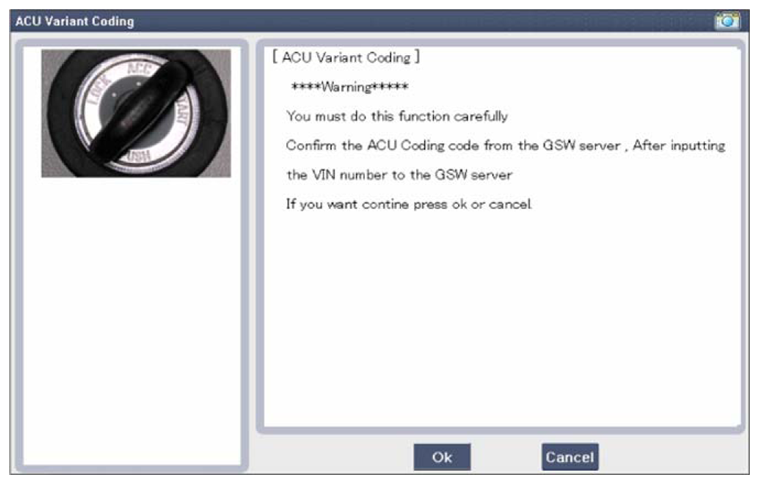

  Fig 8: Screen Display - ACU Variant Coding - Off-Line Type On GDS (1 Of 6)
  Courtesy of KIA MOTORS AMERICA, INC.
2. ACU CODING Code entering screen

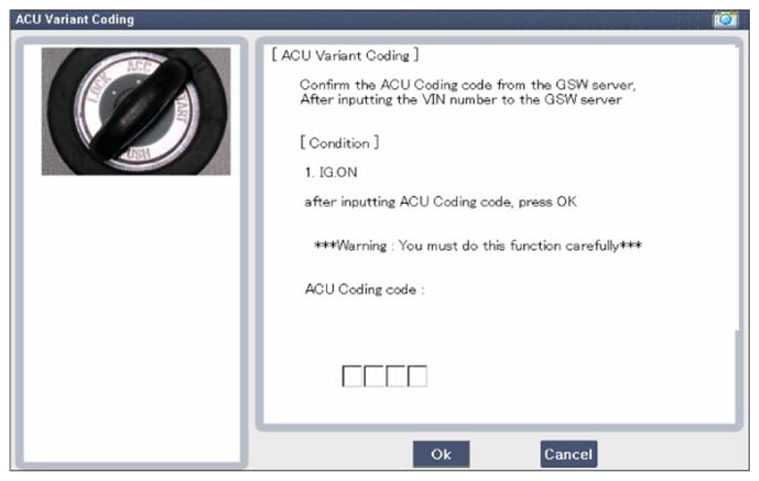

  Fig 9: Screen Display - ACU Variant Coding - Off-Line Type On GDS (2 Of 6)
  Courtesy of KIA MOTORS AMERICA, INC.
3. Screen of rechecking ACU CODING code's entering

  Fig 10: Screen Display - ACU Variant Coding - Off-Line Type On GDS (3 Of 6)
  Courtesy of KIA MOTORS AMERICA, INC.
4. Variant coding's proceeding screen-1

  Fig 11: Screen Display - ACU Variant Coding - Off-Line Type On GDS (4 Of 6)
  Courtesy of KIA MOTORS AMERICA, INC.
5. Variant coding's proceeding screen-2

  Fig 12: Screen Display - ACU Variant Coding - Off-Line Type On GDS (5 Of 6)
  Courtesy of KIA MOTORS AMERICA, INC.
6. Variant coding is completed

  Fig 13: Screen Display - ACU Variant Coding (6 Of 6)
  Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
1. Screen of Retrying the Variant coding after finishing variant coding

  Fig 14: Screen Display - Retrying Variant Coding After Finishing Variant Coding
  Courtesy of KIA MOTORS AMERICA, INC.
