Body Control Module: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

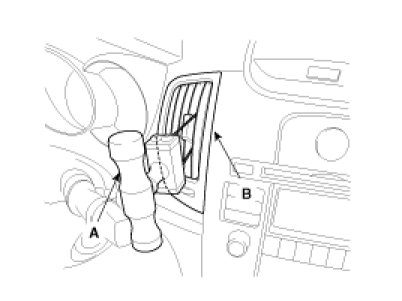

2. Remove the center air vent(B) using the SST(A) (09840-1M100).






CAUTION:
Always use the SST(09840-1M100) to prevent the damage when removing the air vent.

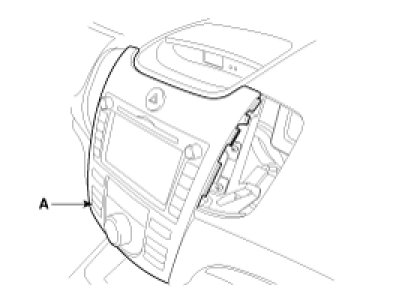

3. Remove the crash pad center facia panel(A).

NOTE:
Take care not to scratch the crash pad and related parts.

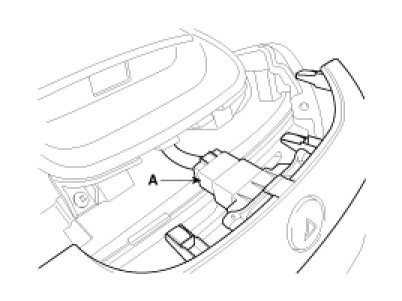

4. Disconnect the connectors(A) from the crash pad center facia panel and heater control unit.

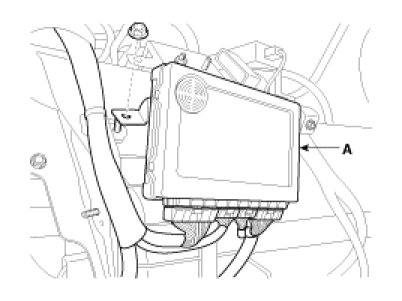

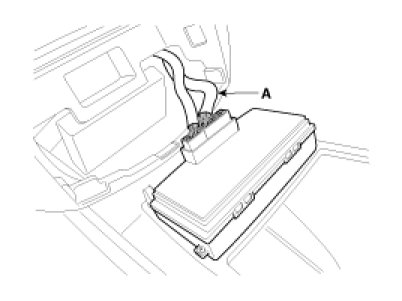

5. Remove the body control module(A) after loosening nuts and disconnecting connector.






Installation

1. Install the body control module.
2. Install the center fascia panel.
3. Install the air vent.

Inspection

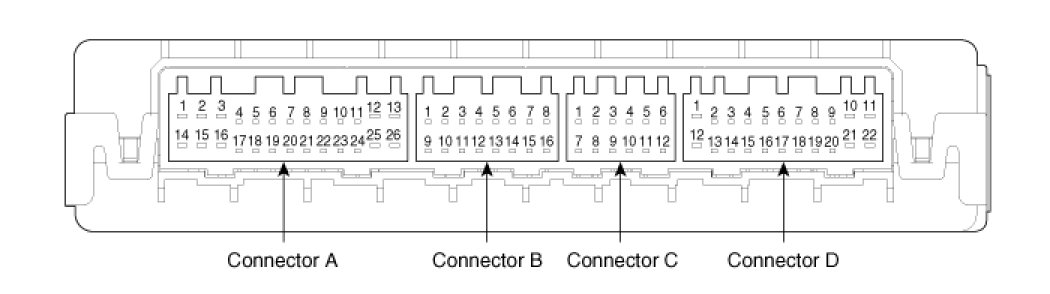

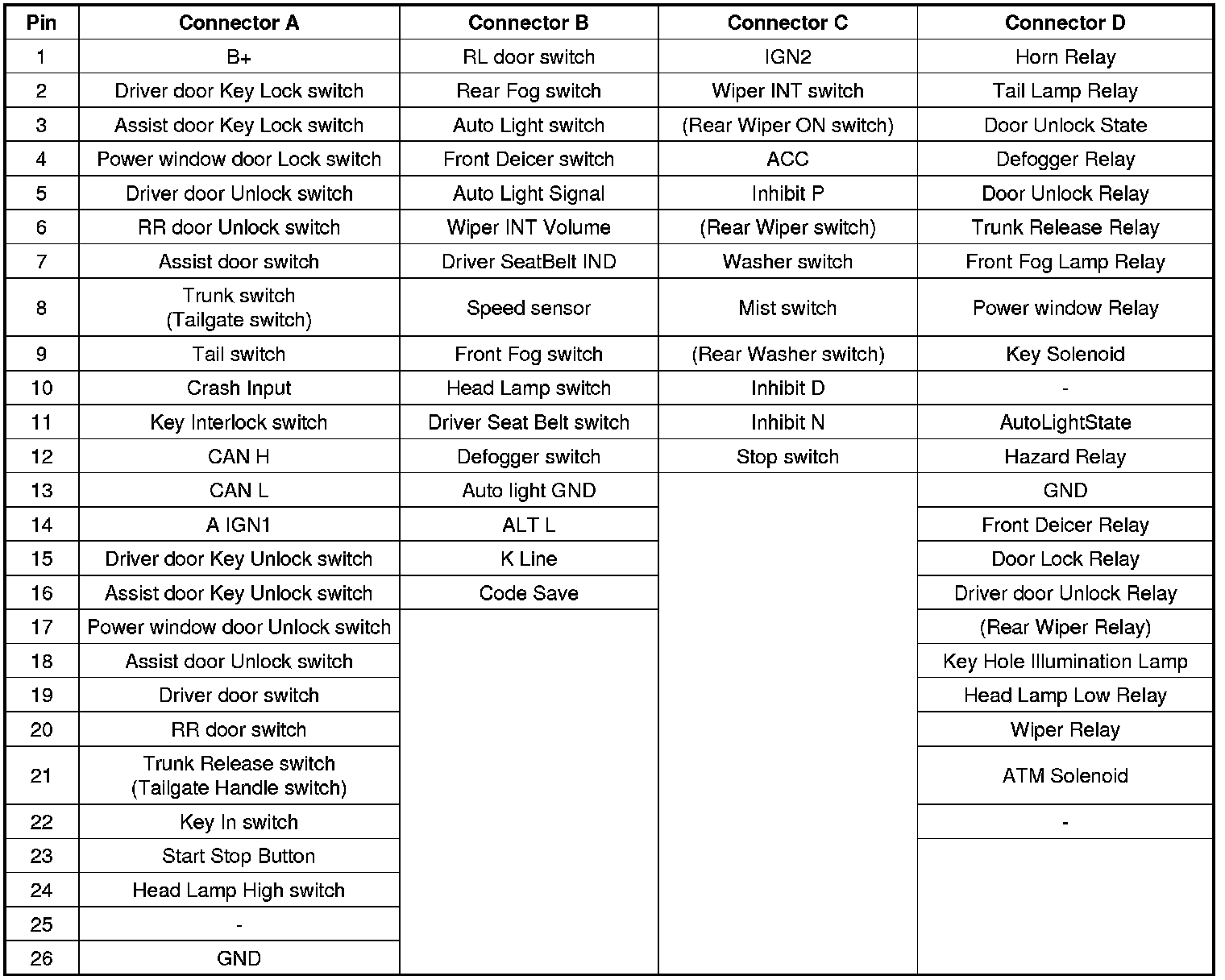

BCM Connectors

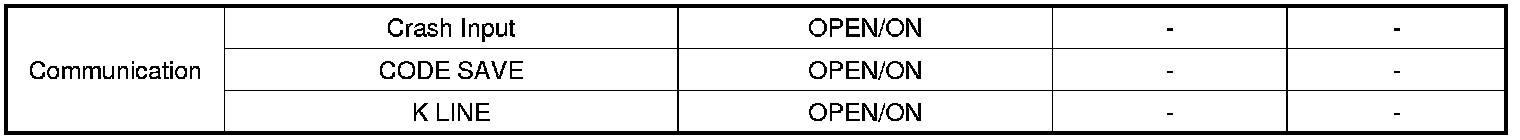

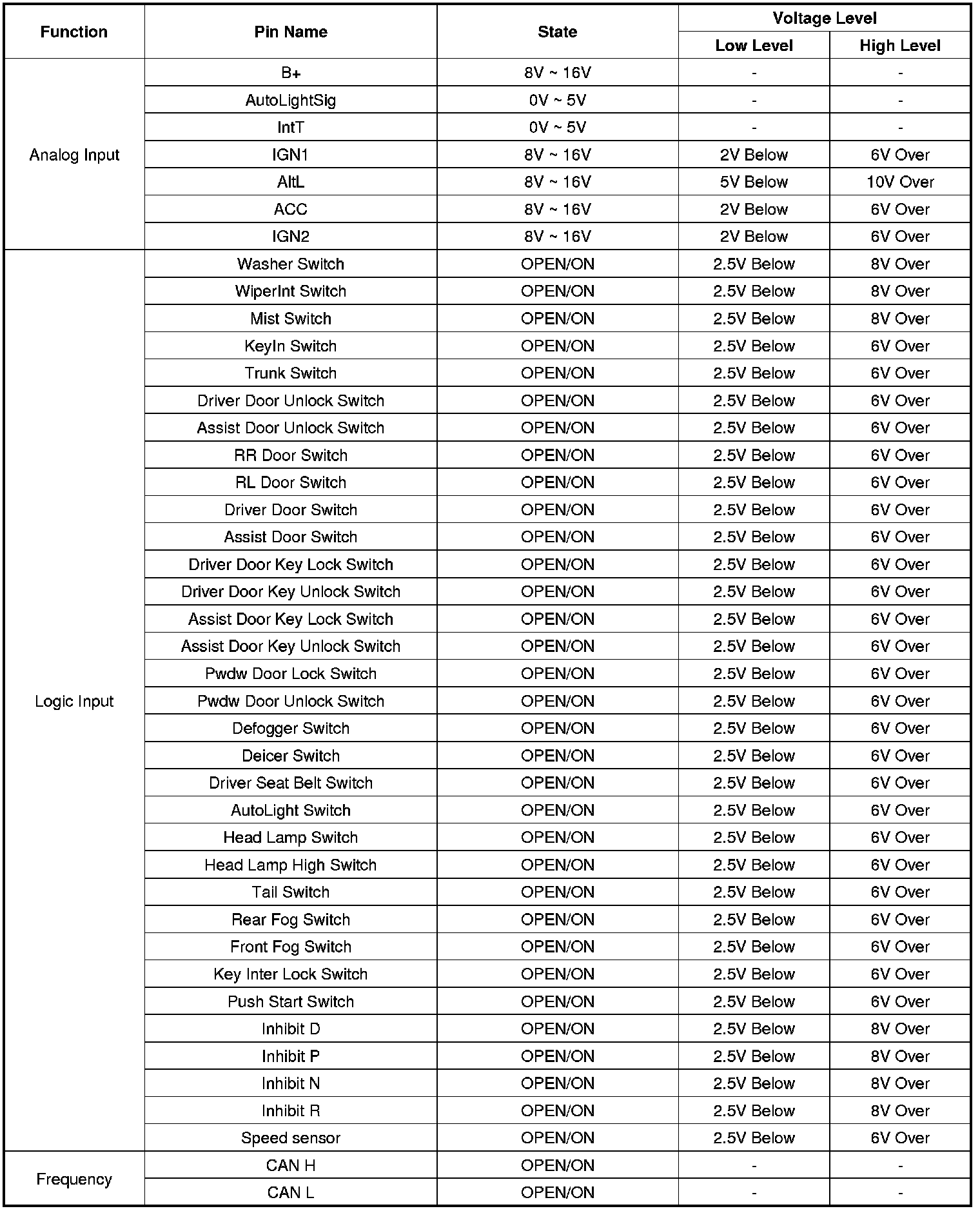

Terminal Voltage
