Transmission Position Sensor/Switch: Specifications
Specifications
- Type: Combination of output signals from 4 terminals

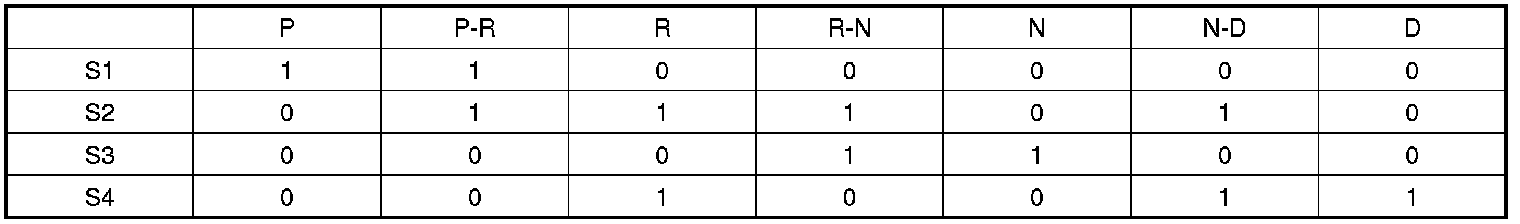

Signal Code Table
