Keyless Starting System

Specification

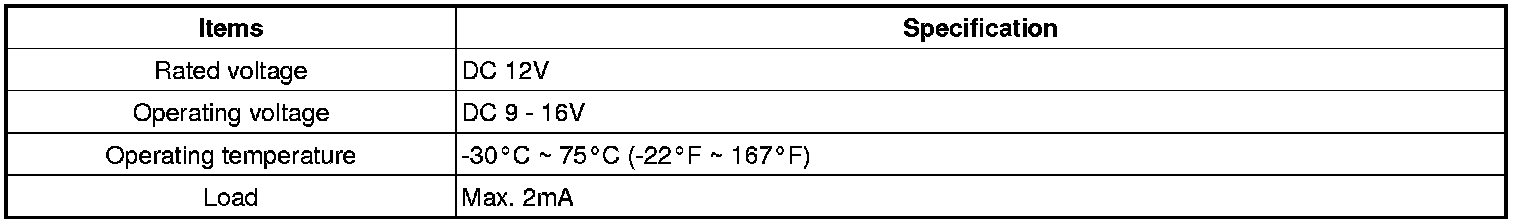

IPM (Smart Key Unit)

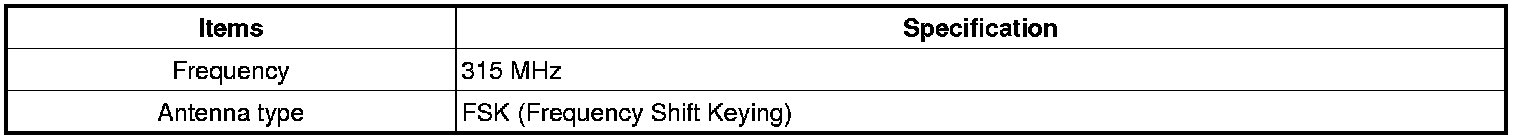

RF Receiver

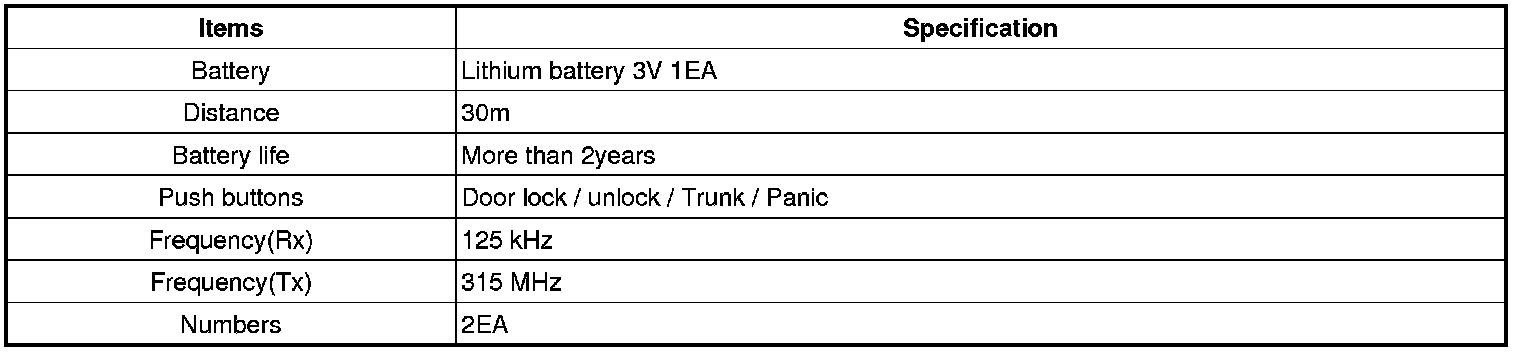

Smart Key FOB






WARNING:
An inappropriately disposed battery can be harmful to the environment and human health.
Dispose the battery according to your local law(s) or regulation.

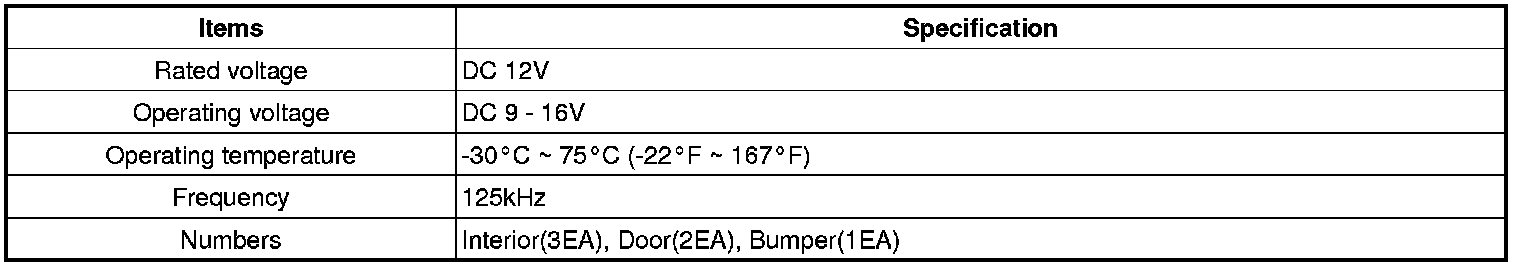

Antenna
