Kia
>>
2011
>>
Forte L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Keyless Starting System
>>

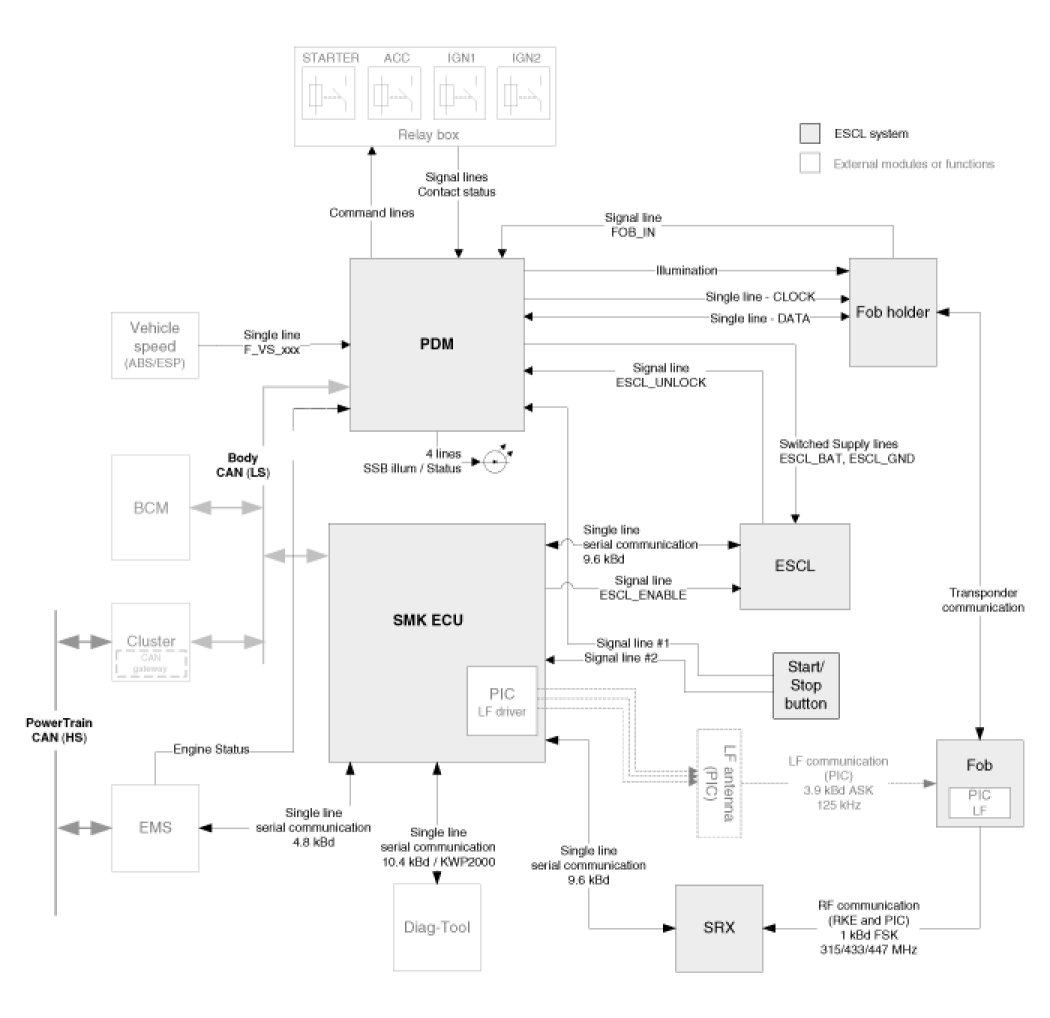

System Diagram
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram
Circuit Diagram
